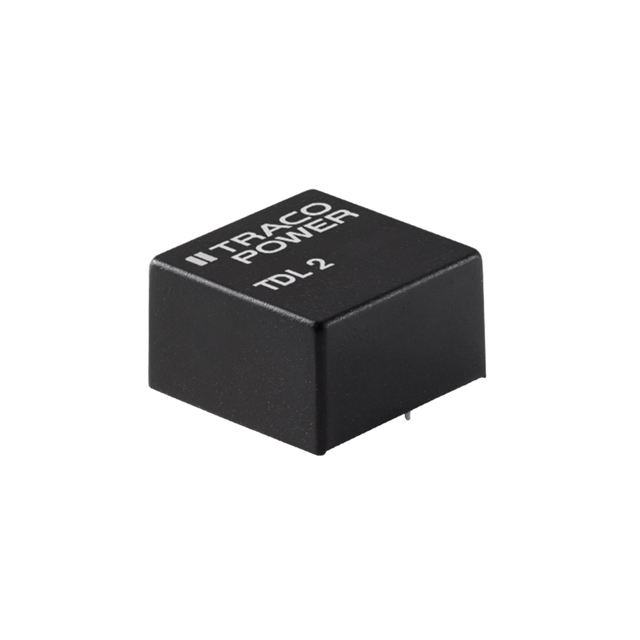

Same model may have multiple batches, images only for reference.

TDL 2-2422

Name: TDL 2-2422
Brand: Traco Power
SKU: 1335336
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TDL 2-2422
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 2W / Isolated Module DC DC Converter 2 Output 12V -12V 83mA, 83mA 18V - 36V Input
Datasheet	TDL 2-2422 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Product Status	Not For New Designs
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	83mA, 83mA
Power (Watts)	2 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 70°C
Efficiency	86%
Mounting	Through Hole
Case / Package	7-DIP Module, 5 Leads
Size / Dimension	0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
Base Product Number	TDL 2
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TDL2-2422,2266-TDL 2-2422,TDL 2-2422-ND
Standard Package	10
Win Source Part Number	1335336-TDL 2-2422
Ultra Librarian 3D Model	Ultra Librarian TDL 2-2422 CAD Model

Alternative Products

Description

The TDL 2-2422 is a DC-DC converter designed for use in various applications.

Manufacturer: Traco Power
Power Rating: 2W
Voltage Isolation: 1.5kV
Maximum Output Current: 83mA
Temperature Range: -40°C to 70°C
Mounting: Through-hole
Package: 7-DIP Module, 5 Leads
Efficiency and Reliability: High efficiency and reliability
