Same model may have multiple batches, images only for reference.

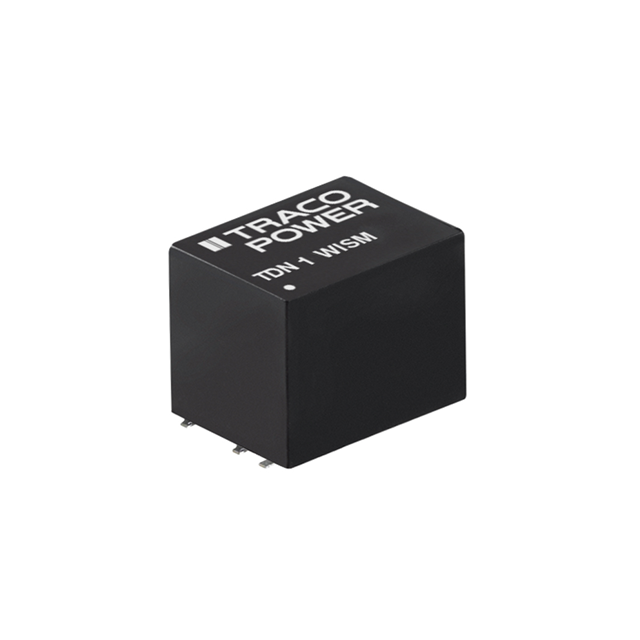

TDN 1-2422WISM Real Image
Same model may have multiple batches, images only for reference.

TDN 1-2422WISM

Part No TDN 1-2422WISM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 1.1W / Isolated Module DC DC Converter 2 Output 12V -12V 45mA, 45mA 9V - 36V Input
Datasheet
TDN 1-2422WISM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 45mA, 45mA
Power (Watts) 1.1 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 90°C
Efficiency 80%
Mounting Surface Mount
Case / Package 7-SMD Module, 6 Leads
Size / Dimension 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Base Product Number TDN 1
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TDN1-2422WISM,TDN 1-2422WISM-ND
Standard Package 10
Win Source Part Number 1335411-TDN 1-2422WISM
Ultra Librarian 3D Model Ultra Librarian TDN 1-2422WISM CAD Model

Description

The electronic component with Id 1148851 is a Traco Power product with Win Source Part Number 1335411-TDN 1-2422WISM.

  • Category: Power Supplies - Board Mount > DC DC Converters
  • Packaging: Tube
  • Type: Isolated Module
  • Remote on/off: Yes
  • SCP: Yes
  • Size/Dimension: 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
  • Applications: ITE (commercial)
  • Standard Package: 10
  • Mounting: Surface Mount
  • Power (watts): 1.1 W
  • Voltage Isolation: 1.6 kV
  • Number of Outputs: 2
  • Current - Output (Max): 45mA, 45mA
  • Voltage Input: 9V to 36V
  • Voltage Output 1: 12V
  • Voltage Output 2: -12V
  • Efficiency: 80 percent
  • Temperature Range: -40°C to 90°C
  • Case / Package: 7-SMD Module, 6 Leads
  • ECCN: EAR99
  • HTSUS: 8504.40.9580
  • Other Part Numbers: TDN1-2422WISM and TDN 1-2422WISM-ND
  • Base Product Number: TDN 1
  • ROHS3 Compliant: Yes
