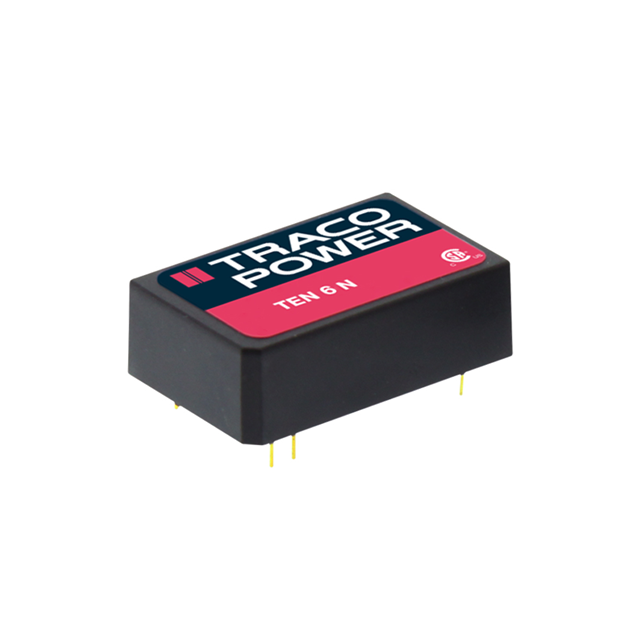

Same model may have multiple batches, images only for reference.

TEN 6-4821N

Name: TEN 6-4821N
Brand: Traco Power
SKU: 1335839
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	TEN 6-4821N
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 5W / Isolated Module DC DC Converter 2 Output 5V -5V 500mA, 500mA 36V - 75V Input
Datasheet	TEN 6-4821N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	500mA, 500mA
Power (Watts)	5 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	OCP, SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	80%
Mounting	Through Hole
Case / Package	24-DIP Module, 8 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number	TEN 6
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TEN 6-4821N-ND,TEN6-4821N
Standard Package	10
Win Source Part Number	1335839-TEN 6-4821N
Ultra Librarian 3D Model	Ultra Librarian TEN 6-4821N CAD Model

Alternative Products

Description

The Traco Power TEN 6-4821N is a DC-DC converter with an isolated module type and two outputs.

Power: 5 W
Voltage Isolation: 1.5 kV
Protection: Overcurrent protection (OCP) and short circuit protection (SCP)
Size: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Mounting: Through-hole
Efficiency: 80%
Operating Temperature Range: -40°C to 85°C (with derating)
Category: power supplies - board mount>DC DC converters
Package: Tube
