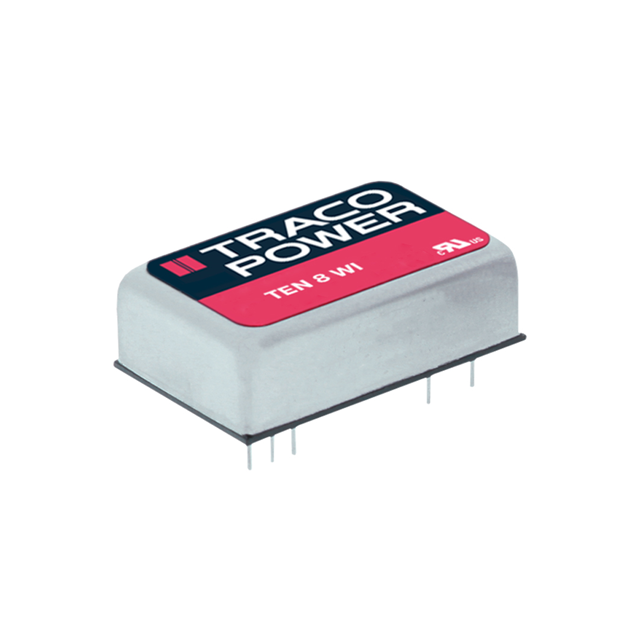

Same model may have multiple batches, images only for reference.

TEN 8-7221WI

Name: TEN 8-7221WI
Brand: Traco Power
SKU: 1335862
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TEN 8-7221WI
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 8W / Isolated Module DC DC Converter 2 Output 5V -5V 800mA, 800mA 43V - 160V Input
Datasheet	TEN 8-7221WI Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	43V
Voltage - Input (Max)	160V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	800mA, 800mA
Power (Watts)	8 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial), Railway
Features	Remote On/Off, OCP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	82%
Mounting	Through Hole
Case / Package	24-DIP Module, 9 Leads
Size / Dimension	1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
Base Product Number	TEN 8
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TEN8-7221WI,TEN 8-7221WI-ND
Standard Package	10
Win Source Part Number	1335862-TEN 8-7221WI
Ultra Librarian 3D Model	Ultra Librarian TEN 8-7221WI CAD Model

Alternative Products

Description

The TEN 8-7221WI is a power supply board mount DC-DC converter from Traco Power with a packaging tube.

Module Type: Isolated
Features: Remote On/Off, OCP, OVP, SCP, and UVLO
Size: 1.26 inches in length, 0.80 inches in width, and 0.40 inches in height
Efficiency: 82 percent
Maximum Current Output: Up to 800mA for both of its two outputs
Voltage Input Range: From 43V to 160V
Voltage Isolation: 1.5 kV
Applications: ITE (Commercial) and Railway
