Same model may have multiple batches, images only for reference.

THD 10-2413WIN

Name: THD 10-2413WIN
Brand: Traco Power
SKU: 1335890
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	THD 10-2413WIN
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 10W / Isolated Module DC DC Converter 1 Output 15V 666mA 9V - 36V Input
Datasheet	THD 10-2413WIN Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	15V
Current - Output (Max)	666mA
Power (Watts)	10 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	87%
Mounting	Through Hole
Case / Package	24-DIP Module, 9 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number	THD 10
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	THD10-2413WIN,THD 10-2413WIN-ND
Standard Package	10
Win Source Part Number	1335890-THD 10-2413WIN
Ultra Librarian 3D Model	Ultra Librarian THD 10-2413WIN CAD Model

Alternative Products

Description

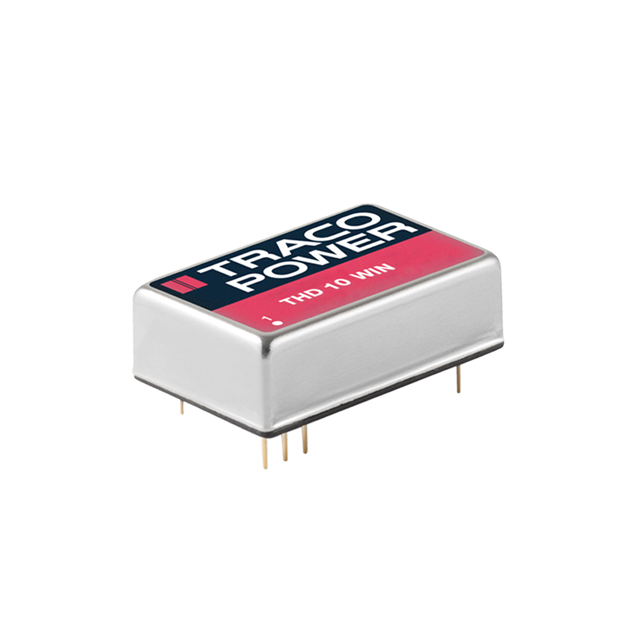

The THD 10-2413WIN is a 10W isolated module DC-DC converter from Traco Power.

Application: ITE (Commercial)
Voltage Isolation: 1.5 kV
Number of Outputs: 1
Maximum Output Current: 666mA
Voltage Input: 9V to 36V
Voltage Output: 15V
Mounting: Through Hole
Case/Package: 24-DIP module, 9 leads
Temperature Range: -40°C to 85°C (With Derating)
Dimensions: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Efficiency: 87%
Features: Remote On/Off, OCP, SCP
Package: Tube
