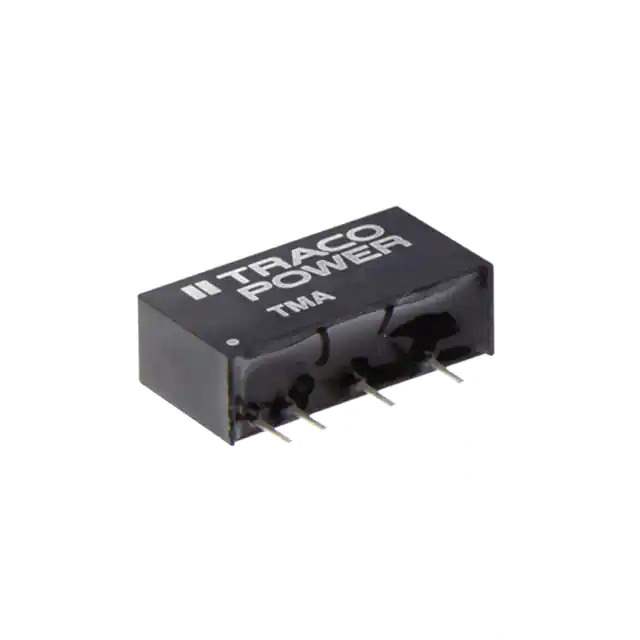

TMA 0515D Real Image
Same model may have multiple batches, images only for reference.

TMA 0515D

Part No TMA 0515D
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 1W
Datasheet
TMA 0515D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Traco Power
Series TMA (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 34mA, 34mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 79%
Mounting Type Through Hole
Package / Case 6-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm)
Base Product Number TMA 0515
Standard Package 10 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 848133-TMA 0515D
Ultra Librarian 3D Model Ultra Librarian TMA 0515D CAD Model

Description

The TMA 0515D is a 1W isolated module DC-DC converter from Traco Power.

  • Series: TMA
  • Application: ITE (Commercial)
  • Outputs: 15V, -15V
  • Output Current: 34mA (each output, Max)
  • Input Voltage: 4.5V to 5.5V
  • Voltage Isolation: 1 kV
  • Size: 0.77" L x 0.24" W x 0.40" H
  • Mounting Type: Through Hole
  • Protection: SCP (Short Circuit Protection)
  • Operating Temperature: -40°C to 85°C (with derating)
  • Efficiency: 79%
  • Package: 6-SIP module, 5 leads
  • Product Status: Active
  • REACH: Unaffected
