Same model may have multiple batches, images only for reference.

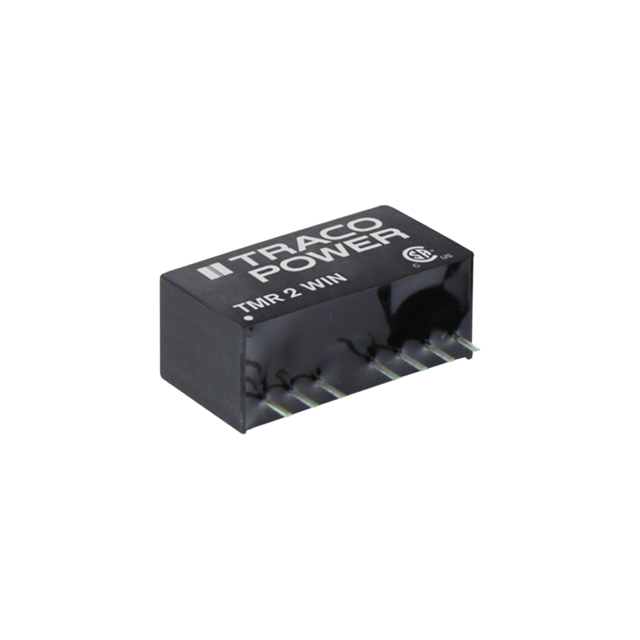

TMR 2-1221WIN Real Image
Same model may have multiple batches, images only for reference.

TMR 2-1221WIN

Part No TMR 2-1221WIN
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 2W / Isolated Module DC DC Converter 2 Output 5V -5V 200mA, 200mA 4.5V - 18V Input
Datasheet
TMR 2-1221WIN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 18V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 200mA, 200mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, SCP
Temperature Range - Operating -40°C ~ 90°C (With Derating)
Efficiency 80%
Mounting Through Hole
Case / Package 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm)
Base Product Number TMR 2
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TMR2-1221WIN,TMR 2-1221WIN-ND
Standard Package 10
Win Source Part Number 1336142-TMR 2-1221WIN
Ultra Librarian 3D Model Ultra Librarian TMR 2-1221WIN CAD Model

Description

The Traco Power TMR2-1221WIN is an isolated module DC DC converter with two outputs.

  • Mounting: Through-hole
  • Package: 8-SIP module with 7 leads
  • Size: 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm)
  • Application: ITE (Commercial)
  • Power Rating: 2 W
  • Efficiency: 80%
  • Features: Remote On/Off, OCP, and SCP
  • Input Voltage Range: 4.5V to 18V
  • Output Voltage (Output 1): 5V
  • Output Voltage (Output 2): -5V
  • Voltage Isolation: 1.5 kV
  • Operating Temperature Range: -40°C to 90°C (With Derating)
  • Compliance: ROHS3 compliant
  • ECCN: EAR99
