Same model may have multiple batches, images only for reference.

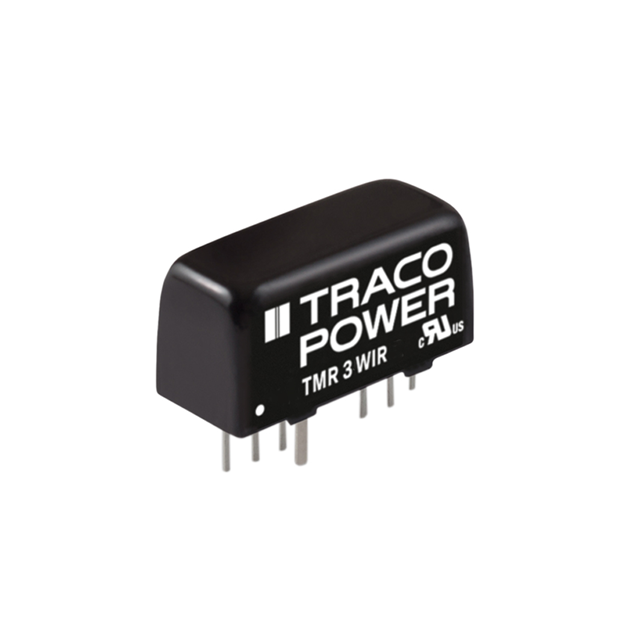

TMR 3-7223WIR Real Image
Same model may have multiple batches, images only for reference.

TMR 3-7223WIR

Part No TMR 3-7223WIR
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 43V - 160V Input
Datasheet
TMR 3-7223WIR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 43V
Voltage - Input (Max) 160V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 100mA, 100mA
Power (Watts) 3 W
Voltage - Isolation 3 kV
Applications ITE (Commercial), Railway
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 90°C (With Derating)
Efficiency 81%
Mounting Through Hole
Case / Package 8-SIP Module
Size / Dimension 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
Base Product Number TMR 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2012
Standard Package 10
Win Source Part Number 1336246-TMR 3-7223WIR
Ultra Librarian 3D Model Ultra Librarian TMR 3-7223WIR CAD Model

Description

The Traco Power electronic component is a 3W isolated module DC DC converter that is designed for use in ITE (Commercial) and railway applications.

  • Features: Remote on/off and SCP
  • Voltage Isolation: 3 kV
  • Size: 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
  • Mounting: Through a hole
  • Outputs: Two
  • Voltage Output 1: 15V
  • Voltage Output 2: -15V
