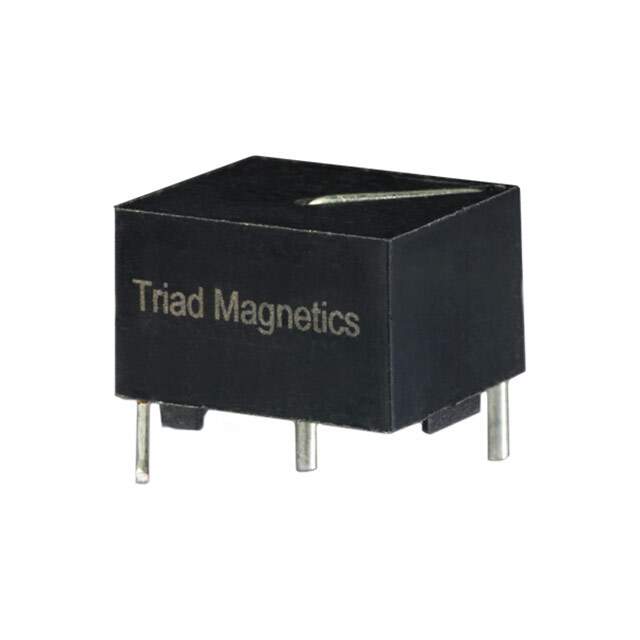

CST25-0100 Real Image
Same model may have multiple batches, images only for reference.

CST25-0100

Part No CST25-0100
Manufacturer Triad Magnetics
Catalog Current Sense Transformers
Description ENCAPSULATED PCB CURRENT SENSE X / 25 A 1:100 Current Sense Transformer 50kHz ~ 500kHz 2Ohm 18 mH Through Hole
Datasheet
CST25-0100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Current Sense Transformers
Mfr Triad Magnetics
Series CST
Package Tube
Frequency Range 50kHz ~ 500kHz
Type Invasive
Current Rating (Amps) 25 A
Inductance 18 mH
ET (Volt-Time) 350VµS
DC Resistance (DCR) 2Ohm
Mounting Type Through Hole
Dimension 0.669" L x 0.591" W (17.00mm x 15.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Termination Style PC Pin
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Names 237-2336,CST25-0100-B
Standard Package 25
Win Source Part Number 1217123-CST25-0100
Ultra Librarian 3D Model Ultra Librarian CST25-0100 CAD Model

Description

The Triad Magnetics electronic component is a current sense transformer with a Win Source Part Number 1217123-CST25-0100.

  • Series: CST
  • Type: Invasive
  • Termination Style: PC Pin
  • Package: Tube
  • Inductance: 18mH
  • Height: 0.472 inches (12.00mm)
  • Standard Package: 25 transformers
  • Frequency Range: 50kHz ~ 500kHz
  • Mounting Type: Through hole
  • DC Resistance (DCR): 2Ohm
  • Dimension: 0.669 inches L x 0.591 inches W (17.00mm x 15.00mm)
  • Current Rating (amps): 25A
  • ET (Volt-Time): 350VμS
  • REACH Status: REACH Unaffected
  • HTSUS: 8504.31.2000
