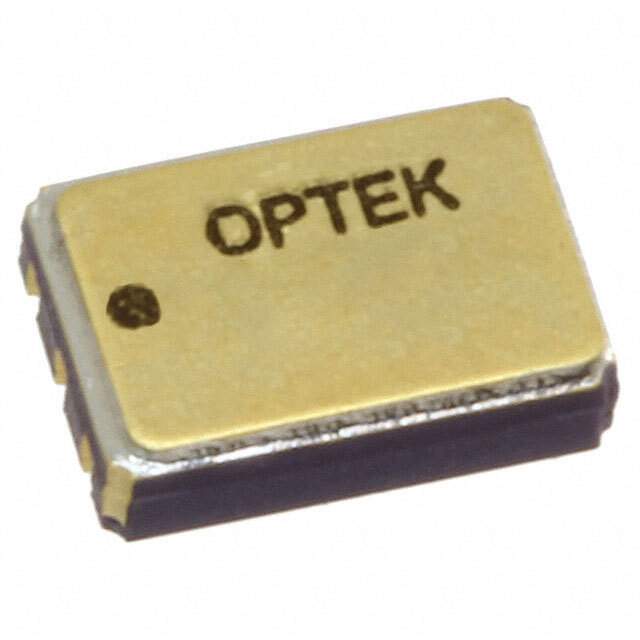

2N5796U

Name: 2N5796U
Brand: TT Electronics
SKU: 1177148
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	2N5796U
Manufacturer	TT Electronics
Catalog	RF Transistors (BJT)
Description	TRANS 2PNP 60V 0.6A 6CLCC / Bipolar (BJT) Transistor Array 2 PNP (Dual) 60V 600mA 600mW Surface Mount 6-CLCC
Datasheet	2N5796U Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - Bipolar (BJT) - Arrays
Mfr	TT Electronics/Optek Technology
Package	Bulk
Transistor Type	2 PNP (Dual)
Current - Collector (Ic) (Max)	600mA
Voltage - Collector Emitter Breakdown (Max)	60V
Vce Saturation (Max) @ Ib, Ic	1.6V @ 50mA, 500mA
Current - Collector Cutoff (Max)	10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 150mA, 10V
Power - Max	600mW
Temperature Range - Operating	-65°C ~ 200°C (TJ)
Mounting	SMD (SMT)
Package / Case	6-CLCC
Supplier Device Package	6-CLCC
Base Product Number	2N5796
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.21.0095
Standard Package	120
Win Source Part Number	1177148-2N5796U
Ultra Librarian 3D Model	Ultra Librarian 2N5796U CAD Model

Alternative Products

Description

The TT Electronics/Optek Technology 2N5796U is a bipolar transistor array that is categorized under Discrete Semiconductor Products.

Package: bulk
Standard Package: 120
Maximum Power: 600mW
Maximum Voltage: 60V
Current Collector (Ic) (Max): 600mA
Transistor Type: 2 PNP (Dual)
Vce saturation (Max) @ Ib, Ic: 1.6V @ 50mA, 500mA
Current Collector Cutoff (Max): 10nA (ICBO)
DC current gain (hFE) (Min) @ Ic, Vce: 100 @ 150mA, 10V
Supply and Demand Status: currently in balance
RoHS: non-compliant
