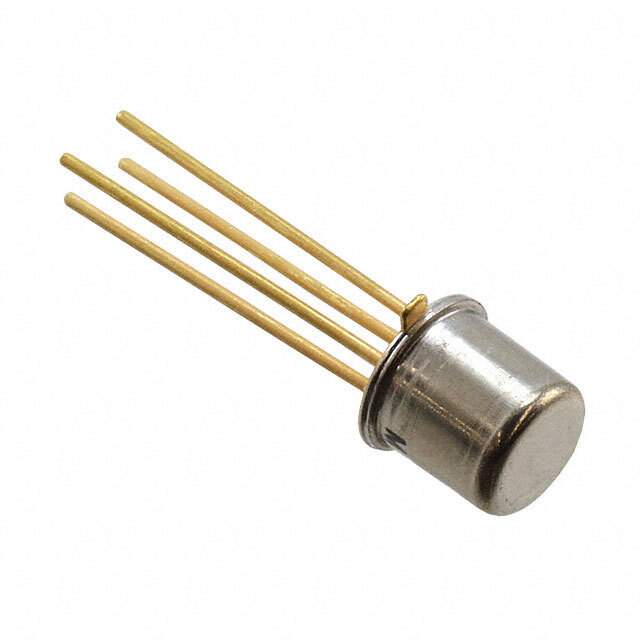

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr TT Electronics/Optek Technology
Package Bulk
Number of Channels 1
Voltage - Isolation 1000VDC
Current Transfer Ratio (Min) 30% @ 10mA
Current Transfer Ratio (Max) 200% @ 10mA
Turn On / Turn Off Time (Typ) 9µs, 6µs (Max)
Input Type DC
Output Type Transistor
Voltage - Output (Max) 50V
Current - Output / Channel 30mA
Voltage - Forward (Vf) (Typ) 1.2V (Max)
Current - DC Forward (If) (Max) 50 mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case TO-206AF, TO-72-4 Metal Can
Supplier Device Package TO-72-4
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Other Names 365-1893
Standard Package 100
Win Source Part Number 1007612-3C91C
Ultra Librarian 3D Model Ultra Librarian 3C91C CAD Model

Description

This is an optoisolator with a transistor output type and a DC input type.

  • Maximum DC Forward Current: 50mA
  • Typical Forward Voltage: 1.2V (max)
  • Current Output/Channel: 30mA
  • Number of Channels: 1
  • Voltage Isolation: 1000VDC
  • Current Transfer Ratio: 30% @ 10mA (minimum) and 200% @ 10mA (maximum)
  • Maximum Voltage Output: 50V
  • Vce Saturation: 400mV
  • Turn On/Turn Off Time: 9µs and 6µs (maximum)
  • Mounting Type: Through Hole
  • Package/Case: TO-206AF, TO-72-4 metal can
  • Supplier Device Package: TO-72-4
  • Operating Temperature Range: -55°C to 125°C
  • Package: Bulk
  • Standard Package: 100
