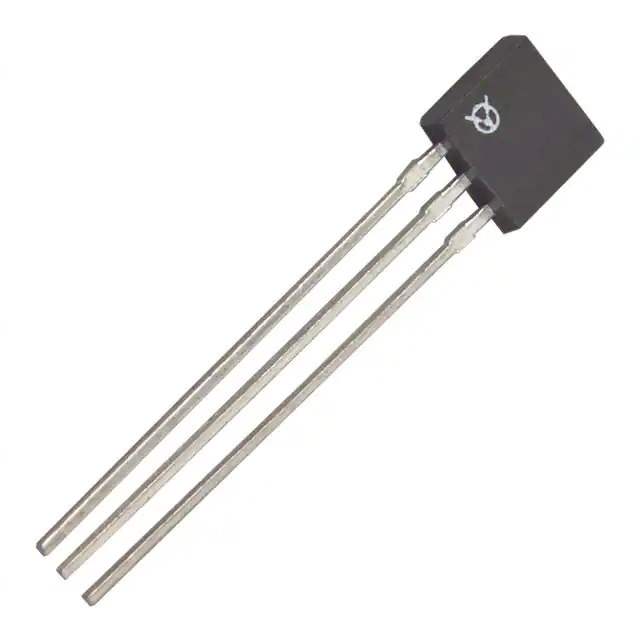

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers - Magnetic Sensors - Switches (Solid State)
Mfr TT Electronics
Series OHN3100
Package Bulk
Product Status Obsolete
Function Unipolar Switch
Technology Hall Effect
Polarization South Pole
Sensing Range 51mT Trip, 2mT Release
Test Condition -20°C ~ 85°C
Voltage - Supply 4.5V ~ 24V
Current - Supply (Max) 7mA
Current - Output (Max) 25mA
Output Type Open Collector
Temperature Range - Operating -20°C ~ 85°C (TA)
Mounting Type Through Hole
Supplier Device Package TO-92-3
Package / Case 3-SSIP
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 650243-OHN3113U
Ultra Librarian 3D Model Ultra Librarian OHN3113U CAD Model

Description

The 650243-OHN3113U is a magnetic sensor switch from the OHN3100 series.

  • Series: OHN3100
  • Technology: Hall Effect
  • Output Type: Open Collector
  • Operating Temperature: -20°C to 85°C
  • Polarity: South Pole
  • Sensing Range: 51mT Trip, 2mT Release
  • Maximum Supply Current: 7mA
  • Maximum Output Current: 25mA
  • Voltage Supply: 4.5V to 24V
  • Mounting Type: Through-Hole
  • Package: 3-SSIP
  • Product Status: Obsolete
  • Manufacturer: TT Electronics
  • REACH Compliant: Unaffected
