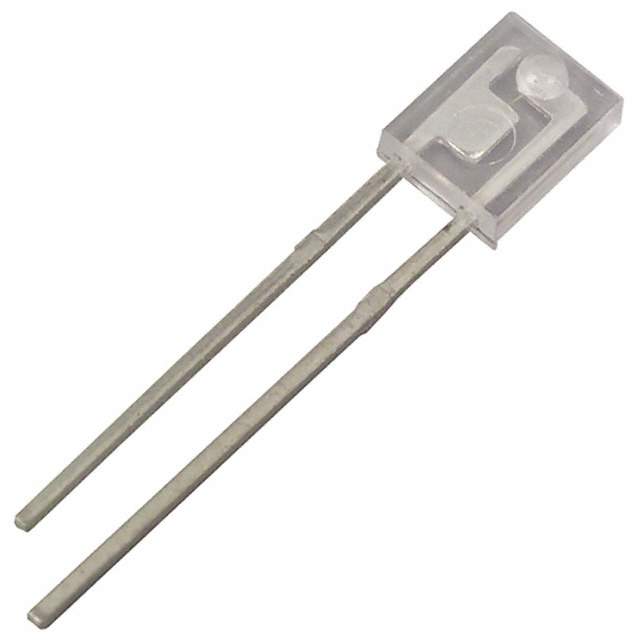

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr TT Electronics/Optek Technology
Package Bulk
Type Infrared (IR)
Current - DC Forward (If) (Max) 50mA
Radiant Intensity (Ie) Min @ If 0.4mW/cm² @ 20mA
Wavelength 935nm
Voltage - Forward (Vf) (Typ) 1.6V
Viewing Angle 40°
Orientation Side View
Temperature Range - Operating -40°C ~ 100°C (TA)
Mounting Type Through Hole
Package / Case Radial
Base Product Number OP140
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 365-1043
Standard Package 1,000
Win Source Part Number 1183304-OP140A
Ultra Librarian 3D Model Ultra Librarian OP140A CAD Model

Description

The OP140A is an Infrared (IR) LED emitter from Optek Technology that offers a wavelength of 935nm and a viewing angle of 40 degrees.

  • Wavelength: 935nm
  • Viewing Angle: 40 degrees
  • Radiant Intensity: 0.4mW/cm² @ 20mA
  • Maximum Forward Current (If): 50mA
  • Typical Forward Voltage (Vf): 1.6V
  • Operating Temperature: -40°C to 100°C
  • Package Type: Radial
  • Mounting Type: Through Hole
  • Standard Package: 1,000 pieces
  • Application: Ideal for use in optoelectronics applications.
