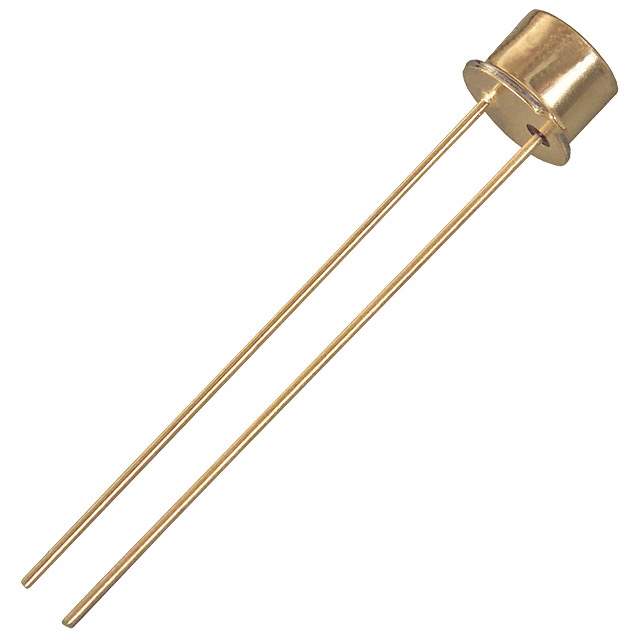

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Manufacturer TT Electronics/Optek Technology
Packaging Bulk
Type Infrared (IR)
Current - DC Forward (If) (Max) 100mA
Wavelength 890nm
Voltage - Forward (Vf) (Typ) 2V
Viewing Angle 50°
Orientation Top View
Temperature Range - Operating -65°C ~ 125°C
Mounting Through Hole
Case / Package TO-46-2 Metal Can
Base Product Number OP232
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number 365-1584,OP232W-ND
Standard Package 1,000
Win Source Part Number 1331869-OP232W
Ultra Librarian 3D Model Ultra Librarian OP232W CAD Model

Description

The electronic component with Id 1145341 is an infrared (IR) LED emitter manufactured by TT Electronics/Optek Technology.

  • Packaging: Bulk
  • Orientation: Top view
  • Mounting Type: Through-hole
  • Standard Package: 1,000
  • Maximum DC Forward Current: 100mA
  • Typical Forward Voltage: 2V
  • Viewing Angle: 50°
  • Wavelength: 890nm
  • Temperature Range: -65°C to 125°C
  • RoHS Compliant: Yes
