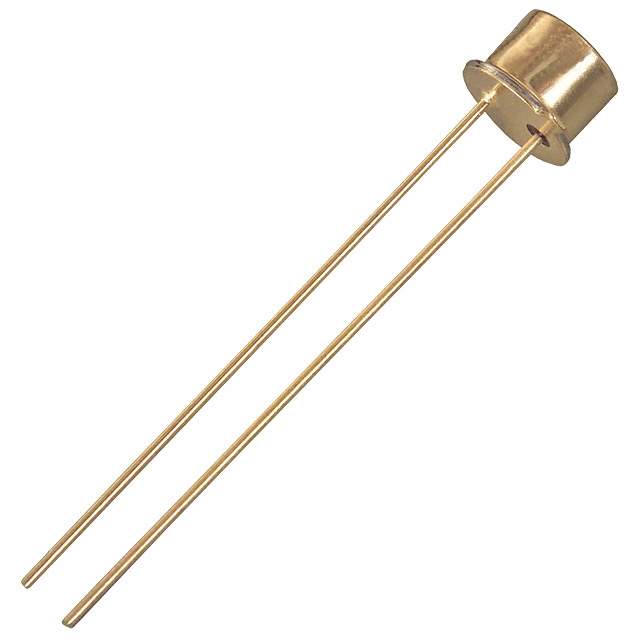

OP235W Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr TT Electronics/Optek Technology
Package Bulk
Type Infrared (IR)
Current - DC Forward (If) (Max) 100mA
Wavelength 850nm
Voltage - Forward (Vf) (Typ) 2V
Viewing Angle 50°
Orientation Top View
Temperature Range - Operating -65°C ~ 125°C (TA)
Mounting Type Through Hole
Package / Case TO-46-2 Metal Can
Base Product Number OP235
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names OP235W-ND,365-1586
Standard Package 1,000
Win Source Part Number 1014185-OP235W
Ultra Librarian 3D Model Ultra Librarian OP235W CAD Model

Description

The Optek Technology OP235W is an Infrared (IR) LED emitter that belongs to the Optoelectronics>LED Emitters - Infrared, UV, Visible category.

  • Standard Package: 1,000
  • Mounting Type: Through-hole
  • Viewing Angle: 50 degrees
  • Voltage-Forward (Vf): 2V
