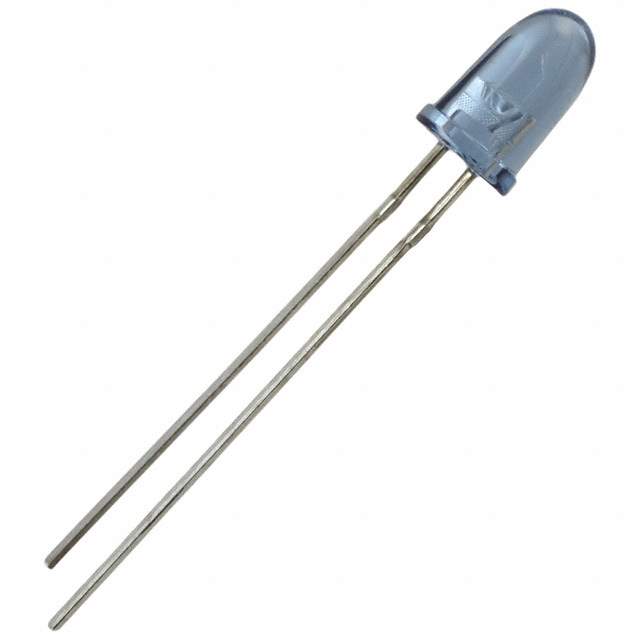

IR1503 Real Image
Same model may have multiple batches, images only for reference.

IR1503

Part No IR1503
Manufacturer Everlight Electronics Co Ltd
Catalog Infrared, UV, Visible Emitters
Description 5mm Infrared LED , T-1 3/4 | EMITTER IR 940NM 100MA RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Everlight Electronics Co Ltd
Packaging Bulk
Type Infrared (IR)
Current - DC Forward (If) (Maximum) 100mA
Radiant Intensity (Ie) Min at If 21mW/sr at 20mA
Wavelength 940nm
Voltage - Forward (Vf) 1.2V
Viewing Angle 20°
Orientation Top View
Temperature Range - Operating -40°C ~ 85°C
Mounting Style Through Hole
Manufacturer Package Radial
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1186517-IR1503
Manufacturer Homepage www.everlight.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IR1503 CAD Model

Description

The Everlight Electronics Co Ltd Infrared (IR) component with the Win Source Part Number 1186517-IR1503 is a through-hole type component with a top view orientation.

  • Viewing Angle: 20 degrees
  • Wavelength: 940nm
  • Category: Optoelectronics
  • Operating Temperature Range: -40 degrees Celsius to 85 degrees Celsius
  • Package: Radial
  • Maximum DC Forward Current: 100mA
  • Radiant Intensity (Ie) minimum @ If: 21mW/sr @ 20mA
  • Supply and demand status: Sufficient
