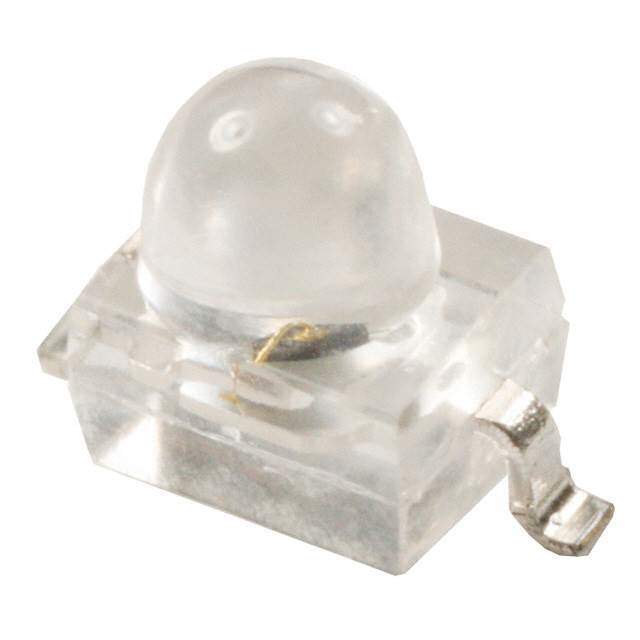

OP271 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Features Infrared (IR) Emitter 890nm 1.5V 50mA - 25° 2-SMD, Gull Wing
Manufacturer TT Electronics
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 2-SMD, Gull Wing
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.2000
Other Part Number 365-1151-1, 365-1151-2
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 888048-OP271
Ultra Librarian 3D Model Ultra Librarian OP271 CAD Model

Description

The TT Electronics infrared emitter is a high-quality electronic component designed for use in optoelectronics applications.

  • Wavelength: 890nm
  • Power Supply: 1.5V
  • Current: 50mA
  • Operating Temperature: -40°C to 85°C
  • Package: 2-SMD, Gull Wing
  • Mounting: Surface Mount Technology
  • Component Status: Obsolete
  • Supply: Limited supply
  • REACH: Unaffected
  • ECCN: EAR99
  • HTSUS Code: 8541.40.2000
