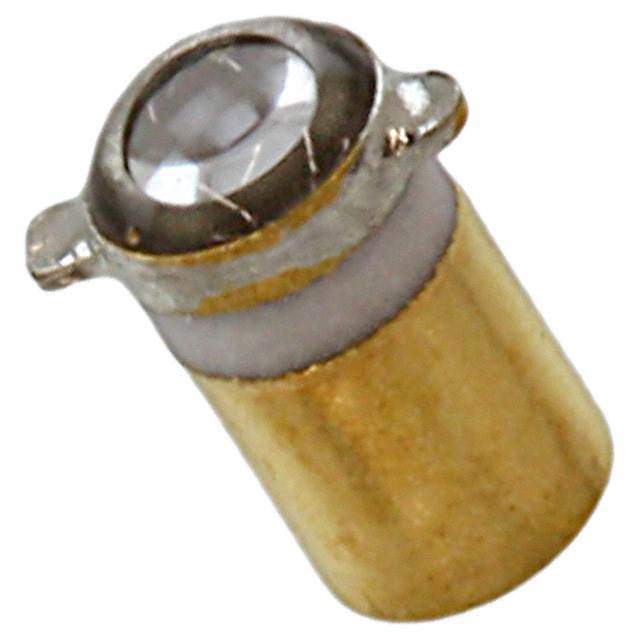

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Phototransistors
Mfr TT Electronics/Optek Technology
Package Bulk
Voltage - Collector Emitter Breakdown (Max) 25 V
Current - Collector (Ic) (Max) 50 mA
Current - Dark (Id) (Max) 100 nA
Wavelength 890nm
Power - Max 50 mW
Mounting SMD (SMT)
Orientation Top View
Temperature Range - Operating -65°C ~ 125°C (TA)
Package / Case Pill
Base Product Number OP644
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.7080
Other Names 365-1078
Standard Package 400
Win Source Part Number 1000505-OP644SL
Ultra Librarian 3D Model Ultra Librarian OP644SL CAD Model

Description

The OP644SL is an optical sensor that falls under the sensors and transducers category. It is manufactured by TT Electronics/Optek Technology.

  • Win Source Part Number: 1000505
  • Maximum Power: 50mW
  • Maximum Voltage: 25V
  • Maximum Current: 50mA
  • Maximum Dark Current: 100nA
  • Wavelength: 890nm
  • Viewing Angle: - degrees
  • Package: Pill
  • Mounting: SMD (SMT)
  • Temperature Range: -65°C to 125°C (TA)
