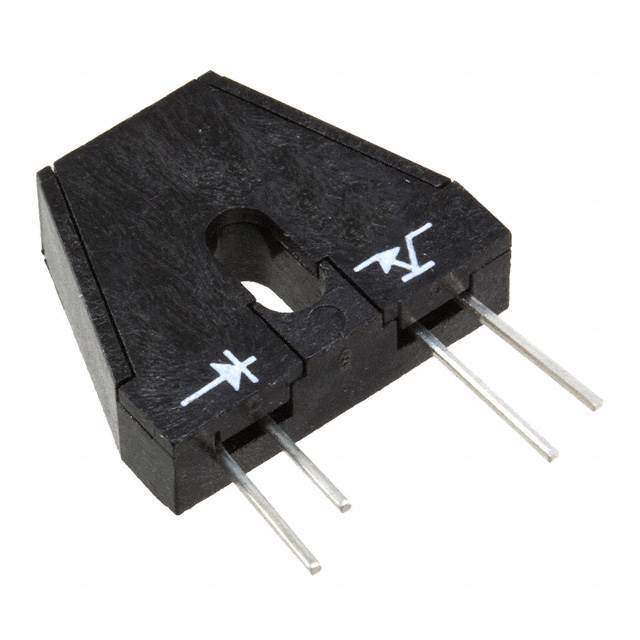

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Reflective - Analog Output
Mfr TT Electronics/Optek Technology
Package Bulk
Sensing Distance 0.150" (3.81mm)
Sensing Method Reflective
Voltage - Collector Emitter Breakdown (Max) 30 V
Current - DC Forward (If) (Max) 40 mA
Output Type Phototransistor
Mounting Type Through Hole
Package / Case PCB Mount
Temperature Range - Operating -40°C ~ 85°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Other Names 365-1697,OPB744-ND
Standard Package 100
Win Source Part Number 1016970-OPB744
Ultra Librarian 3D Model Ultra Librarian OPB744 CAD Model

Description

The OPB744 is an Optical Sensor from TT Electronics/Optek Technology.

  • Manufacturer: TT Electronics/Optek Technology
  • Type: Optical Sensor
  • Output: Reflective Analog
  • Sensing Method: Reflective
  • Sensing Distance: 0.150" (3.81mm)
  • Operating Temperature: -40°C to 85°C
  • Output Type: Phototransistor
  • Voltage - Collector Emitter Breakdown (Max): 30V
  • Mounting Type: Through Hole
  • Package/Case: PCB Mount
  • Standard Package: 100
  • ECCN: EAR99
