Same model may have multiple batches, images only for reference.

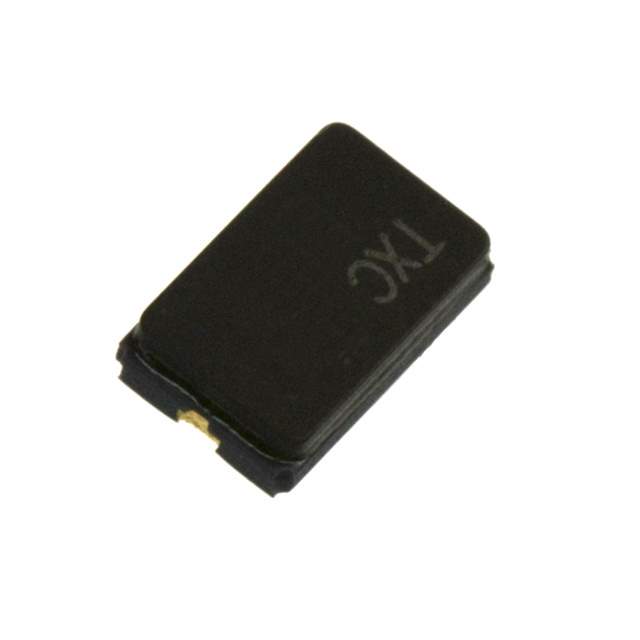

7A24070001 Real Image
Same model may have multiple batches, images only for reference.

7A24070001

Part No 7A24070001
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 24.0000MHZ 18PF SMD / 24 MHz ±30ppm Crystal 18pF 50 Ohms 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr TXC CORPORATION
Series 7A
Package Tape & Reel (TR)
Product Status Obsolete
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.053" (1.35mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Standard Package 1,000
Win Source Part Number 1040859-7A24070001
Ultra Librarian 3D Model Ultra Librarian 7A24070001 CAD Model

Description

Win Source Part Number 1040859-7A24070001 is a MHz crystal with a frequency of 24 MHz and a frequency stability of ±30ppm.

  • Frequency: 24 MHz
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 18pF
  • Operating Mode: Fundamental
  • Seated Height: 0.053" (1.35mm)
  • Package: 2-SMD, No Lead
  • Packaging: Tape & Reel
  • Operating Temperature: -20°C ~ 70°C
  • Standard Package: 1,000
  • Status: Obsolete
  • Manufacturer: TXC CORPORATION
