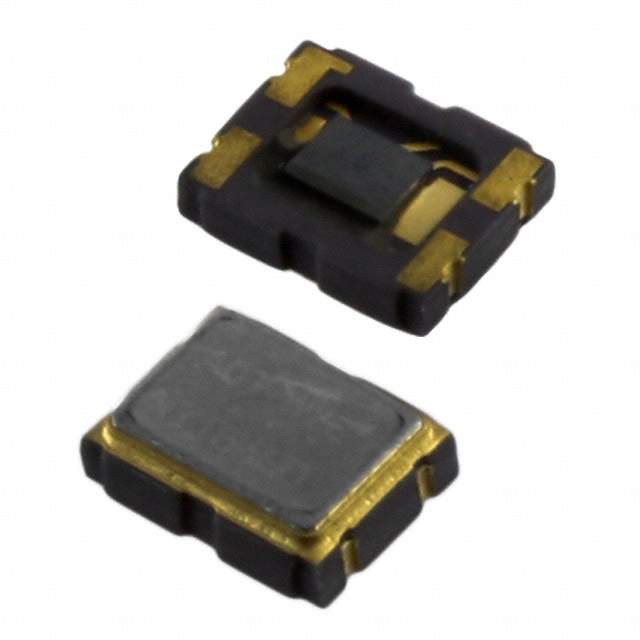

7Q-40.000MDS-T Real Image
Same model may have multiple batches, images only for reference.

7Q-40.000MDS-T

Part No 7Q-40.000MDS-T
Manufacturer TXC CORPORATION
Catalog Oscillators
Description XTAL OSC TCXO 40.0000MHZ SNWV / 40 MHz TCXO Clipped Sine Wave Oscillator 1.8V 4-SMD, No Lead
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr TXC CORPORATION
Series 7Q
Package Tape & Reel (TR)
Product Status Obsolete
Base Resonator Crystal
Type TCXO
Frequency 40 MHz
Output Clipped Sine Wave
Voltage - Supply 1.8V
Frequency Stability ±2ppm
Temperature Range - Operating -30°C ~ 85°C
Current - Supply (Max) 2mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.043" (1.10mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 3,000
Win Source Part Number 1109475-7Q-40.000MDS-T
Ultra Librarian 3D Model Ultra Librarian 7Q-40.000MDS-T CAD Model

Description

The TXC CORPORATION 7Q-40.000MDS-T is a high-quality TCXO oscillator that is widely used in various electronic devices.

  • Frequency: 40 MHz
  • Frequency Stability: ±2ppm
  • Output Waveform: Clipped Sine Wave
  • Current Supply: 2mA
  • Voltage Supply: 1.8V
  • Mounting Type: SMD (SMT)
  • Operating Temperature Range: -30°C ~ 85°C
  • Package: 4-SMD, No Lead
  • Standard Package: 3,000
