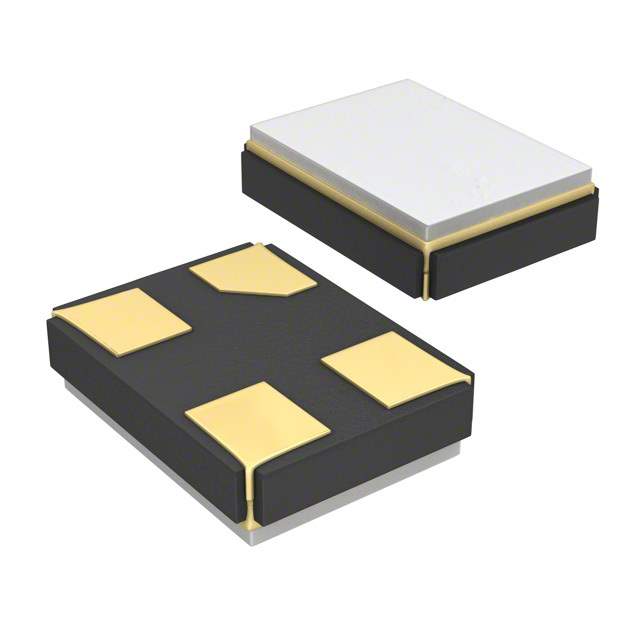

8Z40000030 Real Image
Same model may have multiple batches, images only for reference.

8Z40000030

Part No 8Z40000030
Manufacturer TXC CORPORATION
Catalog Oscillators
Description CRYSTAL 40.0000MHZ 8PF SMD / 40 MHz ±7ppm Crystal 8pF 60 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer TXC CORPORATION
Packaging Reel - TR
Type MHz Crystal
Frequency 40 MHz
Frequency Stability ±13ppm
Frequency Tolerance ±7ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 90°C
Mounting Surface Mount
Case / Package 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.022" (0.55mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Standard Package 3,000
Win Source Part Number 1328367-8Z40000030
Ultra Librarian 3D Model Ultra Librarian 8Z40000030 CAD Model

Description

The 8Z40000030 from TXC CORPORATION is a MHz crystal oscillator with a frequency of 40MHz.

  • Supply Voltage: 3.3V
  • Frequency Stability: ±13ppm
  • Frequency Tolerance: ±7ppm
  • Package: 4-SMD, no lead
  • Popularity: High
  • RoHS Compliance: Yes
