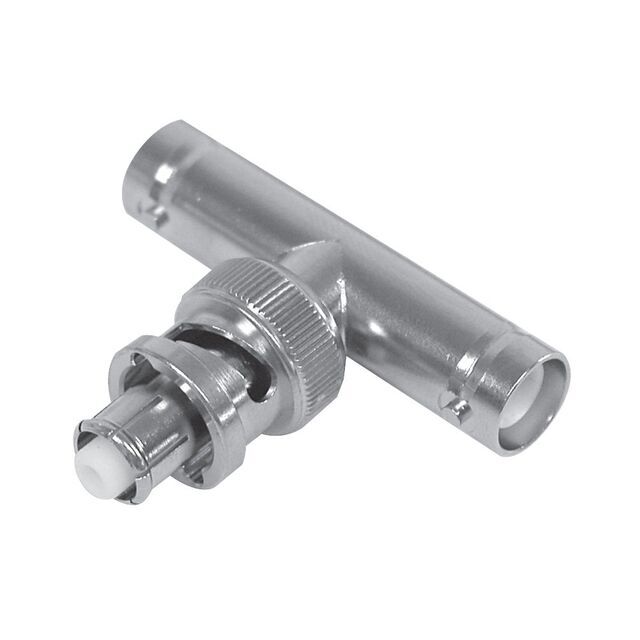

SHV-TA-JPJ TYCLON – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SHV-TA-JPJ

Part No SHV-TA-JPJ
Manufacturer TYCLON
Catalog Coaxial Connectors (RF) - Adapters
Description Adapter Coaxial Connector SMA Plug, Male Pin To SHV Jack, Female Socket (2) 50 Ohms
Datasheet
SHV-TA-JPJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Retail Package
Product Status Active
Adapter Type Plug to Jack
Conversion Type Same Series
Adapter Series SHV to SHV, Dual
Center Gender Female to Male
Convert From (Adapter End) SMA Plug, Male Pin
Convert To (Adapter End) SHV Jack, Female Socket (2)
Impedance 50 Ohms
Style T-Shape
Mounting Type Free Hanging (In-Line)
Fastening Type Bayonet Lock, Bayonet Lock
Center Contact Plating Gold
Ultra Librarian 3D Model Ultra Librarian SHV-TA-JPJ CAD Model
