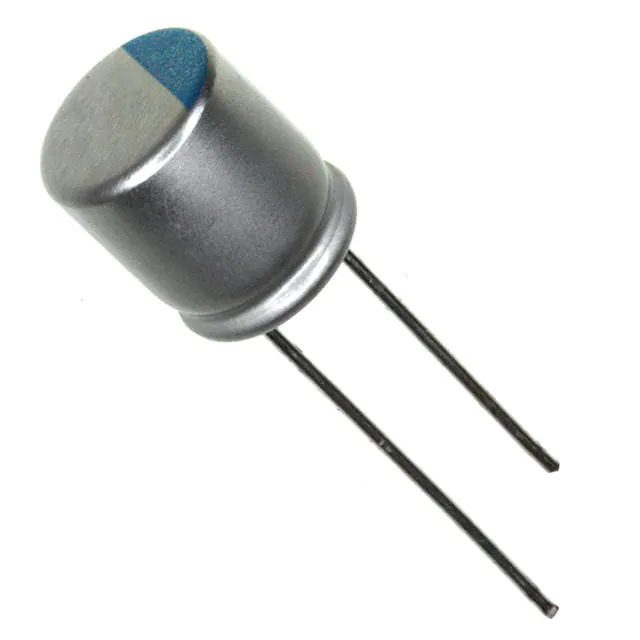

Same model may have multiple batches, images only for reference.
APSG160ELL222MJ20S United Chemi-Con
Same model may have multiple batches, images only for reference.

APSG160ELL222MJ20S

Part No APSG160ELL222MJ20S
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 2200UF 20% 16V T/H / 2200 µF 16 V Aluminum - Polymer Capacitors Radial, Can 8mOhm 20000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series NPCAP™-PSG
Package Bulk
Product Status Active
Type Polymer
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 8mOhm
Lifetime @ Temp. 20000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ High Frequency 8.1 A @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.846" (21.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359587-APSG160ELL222MJ20S
Ultra Librarian 3D Model Ultra Librarian APSG160ELL222MJ20S CAD Model

Description

The United Chemi-Con NPCAP™-PSG series is a bulk packaged aluminum polymer capacitor from United Chemi-Con.

  • Capacitance: 2200 µF
  • Voltage - Rated: 16 V
  • Application: General Purpose
  • Operating Temperature: -55°C ~ 105°C
  • Lead Spacing: 5.00mm
  • Size / Dimension: 10.00mm Dia
  • Lifetime @ Temp.: 20000 Hrs @ 105°C
  • Ripple Current @ High Frequency: 8.1 A @ 100 kHz
  • REACH: Unaffected
  • ECCN: EAR99
