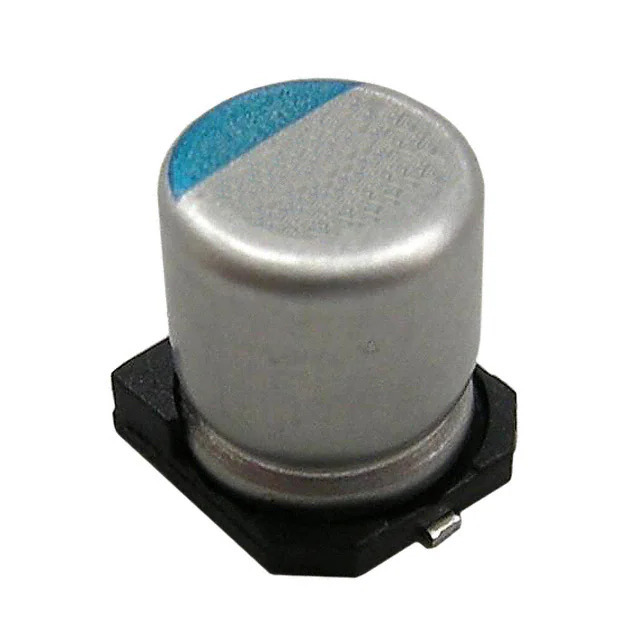

Same model may have multiple batches, images only for reference.
APXK160ARA101MF611 United Chemi-Con
Same model may have multiple batches, images only for reference.

APXK160ARA101MF611

Part No APXK160ARA101MF611
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 100UF 20% 16V SMD / 100 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 24mOhm 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series NPCAP™-PXK
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 24mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ High Frequency 2.49 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.228" (5.80mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359575-APXK160ARA101MF611
Ultra Librarian 3D Model Ultra Librarian APXK160ARA101MF611 CAD Model

Description

The 1359575-APXK160ARA101MF611 is a polymer capacitor from United Chemi-Con's NPCAP™-PXK series.

  • Series: NPCAP™-PXK
  • Capacitance: 100 µF
  • Voltage Rating: 16 V
  • ESR: 24mOhm
  • Lifetime: 2000 hours @ 105°C
  • Application: General Purpose
  • Ripple Current: 2.49 A @ 100 kHz
  • Package: Radial, Can - SMD
  • Size/Dimension: 0.248" diameter (6.30mm)
  • Height: 0.228" (5.80mm)
  • REACH: Unaffected
  • ECCN: EAR99
