Same model may have multiple batches, images only for reference.

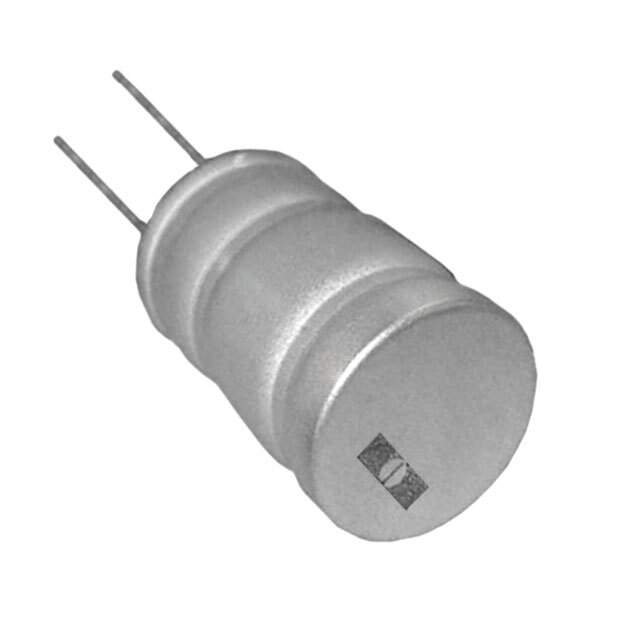

EGVD101ELL511MM30H Real Image
Same model may have multiple batches, images only for reference.

EGVD101ELL511MM30H

Part No EGVD101ELL511MM30H
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 510UF 20% 100V RADIAL / 510 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 38mOhm @ 100kHz 2000 Hrs @ 135°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series GVD
Package Bulk
Capacitance 510 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) 38mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 135°C
Temperature Range - Operating -40°C ~ 135°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 1.9 A @ 120 Hz
Ripple Current @ High Frequency 3.8 A @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 1.240" (31.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1348804-EGVD101ELL511MM30H
Ultra Librarian 3D Model Ultra Librarian EGVD101ELL511MM30H CAD Model

Description

United Chemi-Con's GVD series of capacitors is designed for automotive applications.

  • Win Source Part Number: 1348804-EGVD101ELL511MM30H
  • Package: Bulk
  • Size/Dimension: 0.709" Dia (18.00mm)
  • Height Seated: 1.240" (31.50mm)
  • Capacitance: 510 µF
  • Tolerance: ±20%
  • Rated Voltage: 100 V
  • Lifetime: 2000 Hrs @ 135°C
  • Polarization: Polarized
  • Lead Spacing: 0.295" (7.50mm)
  • ESR: 38mOhm @ 100kHz
  • Operating Temperature: -40°C to 135°C
  • AEC-Q200: Rated
