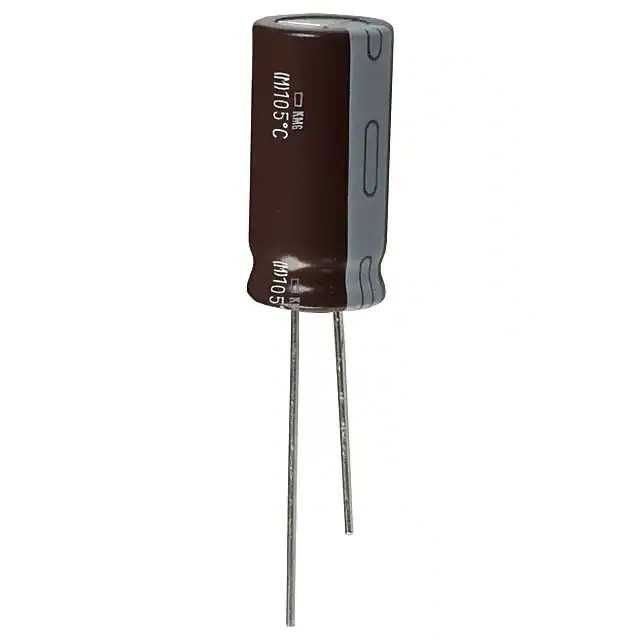

Same model may have multiple batches, images only for reference.
EKMG250ELL222MK25S United Chemi-Con
Same model may have multiple batches, images only for reference.

EKMG250ELL222MK25S

Part No EKMG250ELL222MK25S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 2200UF 20% 25V RADIAL / 2200 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KMG
Package Bulk
Product Status Active
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.09 A @ 120 Hz
Ripple Current @ High Frequency 1.1772 A @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.043" (26.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357912-EKMG250ELL222MK25S
Ultra Librarian 3D Model Ultra Librarian EKMG250ELL222MK25S CAD Model

Description

The United Chemi-Con EKMG250ELL222MK25S is an aluminum electrolytic capacitor.

  • Series: KMG
  • Capacitance: 2200 μF
  • Tolerance: ±20%
  • Voltage Rating: 25 V
  • Application: General Purpose
  • Ripple Current (120Hz): 1.09 A
  • Ripple Current (100kHz): 1.1772 A
  • Mounting Type: Through Hole
  • Package: Radial, Can
  • Size: 0.492" Dia (12.50mm)
  • Height: 1.043" (26.50mm)
  • Lifetime: 1000 hours @ 105°C
  • REACH: Unaffected
  • ECCN: EAR99
  • Polarization: Polarized
