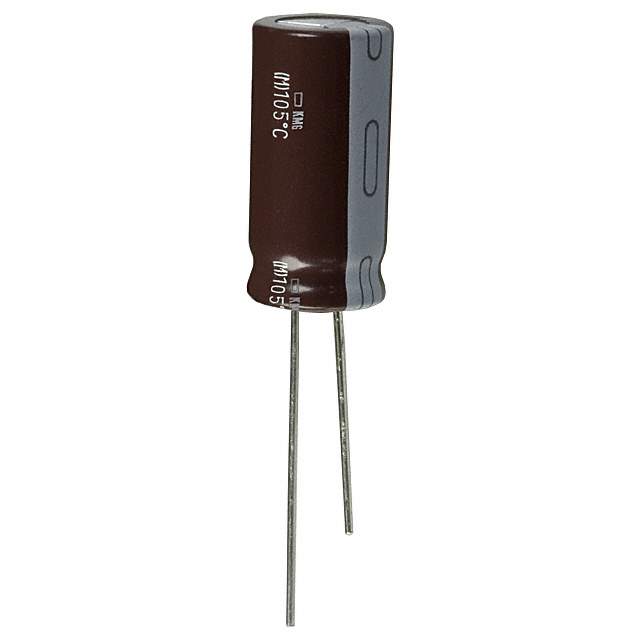

EKMG630ELL102ML25S Real Image
Same model may have multiple batches, images only for reference.

EKMG630ELL102ML25S

Part No EKMG630ELL102ML25S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 1000UF 20% 63V RADIAL
Datasheet
EKMG630ELL102ML25S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer United Chemi-Con
Packaging Bulk
Status Active
Capacitance 1000μF
Tolerance ±20%
Voltage Rating 63V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C to 105°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 930mA @ 120Hz
Ripple Current - High Frequency 1.395A @ 100kHz
Lead Spacing 0.295" (7.50mm)
Height - Seated (Max) 1.043" (26.50mm)
Mounting Through Hole
Dimension Radial, Can
Win Source Part Number 1050498-EKMG630ELL102ML25S
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EKMG630ELL102ML25S CAD Model

Description

The EKMG630ELL102ML25S by United Chemi-Con is a 1000μF, 63V aluminum electrolytic capacitor suitable for general purpose applications.

  • Maximum Seated Height: 1.043" (26.50mm)
  • Lead Spacing: 0.295" (7.50mm)
  • Lifetime: 1000 Hrs @ 105°C
  • Ripple Current: 930mA @ 120Hz and 1.395A @ 100kHz
  • Tolerance: ±20%
