EKZN800ELL561MK35S United Chemi-Con
Same model may have multiple batches, images only for reference.

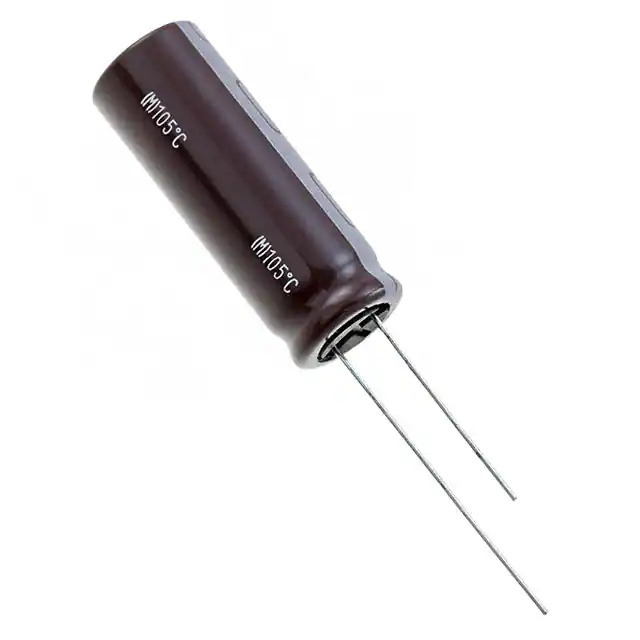

EKZN800ELL561MK35S

Part No EKZN800ELL561MK35S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 560UF 20% 80V RADIAL / 560 µF 80 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KZN
Package Bulk
Product Status Active
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 80 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.3 A @ 120 Hz
Ripple Current @ High Frequency 2.6 A @ 100 kHz
Impedance 26 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.437" (36.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358294-EKZN800ELL561MK35S
Ultra Librarian 3D Model Ultra Librarian EKZN800ELL561MK35S CAD Model

Description

The 1358294-EKZN800ELL561MK35S is an aluminum electrolytic capacitor from United Chemi-Con's KZN series.

  • Capacitance: 560 μF
  • Voltage Rating: 80 V
  • Operating Temperature: -40°C to 105°C
  • Application: General Purpose
  • Ripple Current (Low Frequency): 1.3 A @ 120 Hz
  • Ripple Current (High Frequency): 2.6 A @ 100 kHz
  • Package: Radial, Can
  • Diameter: 0.492 inches (12.50 mm)
  • Height (Max): 1.437 inches (36.50 mm)
  • Mounting Type: Through Hole
  • Lead Spacing: 0.197 inches (5.00 mm)
  • Lifetime: 10,000 hours @ 105°C
  • Polarization: Polarized
  • Impedance: 26 mOhms
  • Product Status: Active
  • REACH Status: Unaffected
