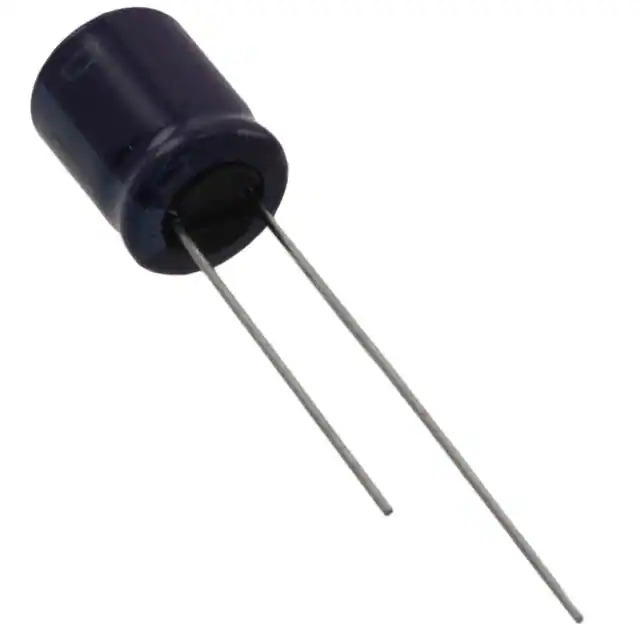

ELXZ630ELL121MJ16S United Chemi-Con
Same model may have multiple batches, images only for reference.

ELXZ630ELL121MJ16S

Part No ELXZ630ELL121MJ16S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 120UF 20% 63V RADIAL / 120 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series LXZ
Package Bulk
Product Status Active
Capacitance 120 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 240 mA @ 120 Hz
Ripple Current @ High Frequency 600 mA @ 100 kHz
Impedance 190 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357791-ELXZ630ELL121MJ16S
Ultra Librarian 3D Model Ultra Librarian ELXZ630ELL121MJ16S CAD Model

Description

The LXZ series aluminum electrolytic capacitor by United Chemi-Con is a high-quality component designed for automotive applications.

  • Capacitance: 120 µF
  • Voltage Rating: 63 V
  • Tolerance: ±20%
  • Lifetime: 5000 hours @ 105°C
  • Package: Radial, Can
  • Size: 0.394" diameter and a height of 0.689"
  • ESR: Low
  • Ripple Current (Low Frequency): 240 mA @ 120 Hz
  • Ripple Current (High Frequency): 600 mA @ 100 kHz
  • Polarization: Polarized
  • Lead Spacing: 0.197" (5.00mm)
  • Mounting Type: Through-Hole
  • REACH: Unaffected
  • AEC-Q200: Yes
