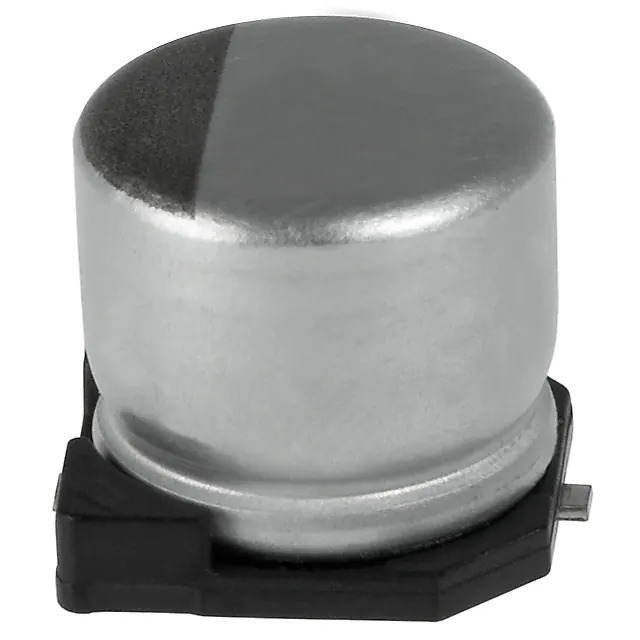

EMZA160ARA101MF61G United Chemi-Con
Same model may have multiple batches, images only for reference.

EMZA160ARA101MF61G

Part No EMZA160ARA101MF61G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 16V SMD / 100 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MZA
Package Tape & Reel
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 96 mA @ 120 Hz
Ripple Current @ High Frequency 240 mA @ 100 kHz
Impedance 360 mOhms
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360268-EMZA160ARA101MF61G
Ultra Librarian 3D Model Ultra Librarian EMZA160ARA101MF61G CAD Model

Description

The EMZA160ARA101MF61G is a 100 µF aluminum electrolytic capacitor from United Chemi-Con.

  • Capacitance: 100 µF
  • Voltage - Rated: 16 V
  • Tolerance: ±20%
  • Operating Temperature: -55°C ~ 105°C
  • Polarization: Polar
  • Series: EMZA
  • Applications: General Purpose
  • Package / Case: Radial, Can - SMD
  • Size / Dimension: 0.248" Dia (6.30mm)
  • Height - Seated (Max): 0.240" (6.10mm)
  • Mounting Type: Surface Mount
  • REACH: Compliant
  • ECCN: EAR99
