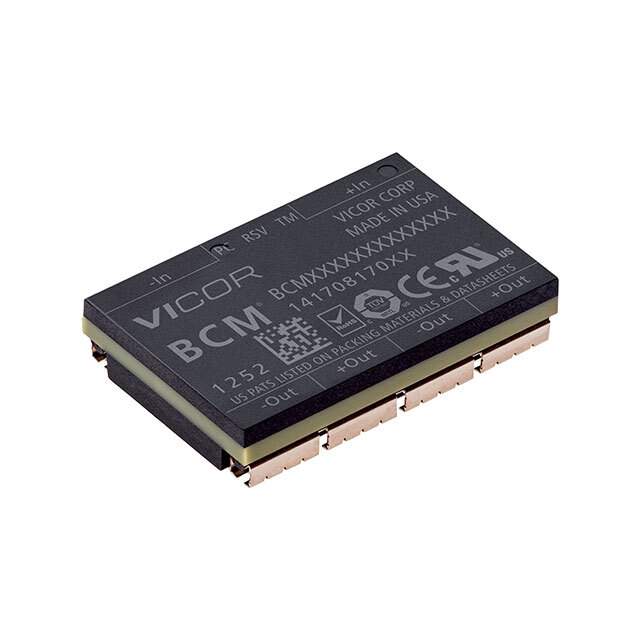

Same model may have multiple batches, images only for reference.

BCM48BF320T300A00

Name: BCM48BF320T300A00
Brand: Vicor Corporation
SKU: 1012807
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	BCM48BF320T300A00
Manufacturer	Vicor Corporation
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 32V 300W / Bus Converter Module DC DC Converter 1 Output 32V 9A 38V - 55V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Vicor Corporation
Series	VI Chip® BCM® (300W)
Package	Tray
Type	Bus Converter Module
Number of Outputs	1
Voltage - Input (Min)	38V
Voltage - Input (Max)	55V
Voltage - Output 1	32V
Current - Output (Max)	9A
Power (Watts)	300 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial)
Features	OCP, OTP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 125°C
Efficiency	96%
Mounting	SMD (SMT)
Package / Case	Module
Dimension	1.28" L x 0.87" W x 0.26" H (32.5mm x 22.0mm x 6.7mm)
Base Product Number	BCM48
MSL Level	4 (72 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.8500
Other Names	1102-5717,BCM48BF320T300A00-ND
Standard Package	1
Win Source Part Number	1012807-BCM48BF320T300A00
Ultra Librarian 3D Model	Ultra Librarian BCM48BF320T300A00 CAD Model

Alternative Products

Description

The VI Chip BCM (300W) series from Vicor Corporation provides a range of bus converter modules that are ideal for use in ITE (Commercial) applications.

Series: VI Chip BCM (300W)
Application: ITE (Commercial)
Voltage Input Range: 38V to 55V
Maximum Output Current: 9A
Output Voltage: 32V
Protection: OCP, OTP, SCP, and UVLO
Efficiency: 96%
Power: Up to 300W
Mounting: SMD (SMT)
Package: Compact module package (1.28" L x 0.87" W x 0.26" H (32.5mm x 22.0mm x 6.7mm))
Operating Temperature: -40°C to 125°C
