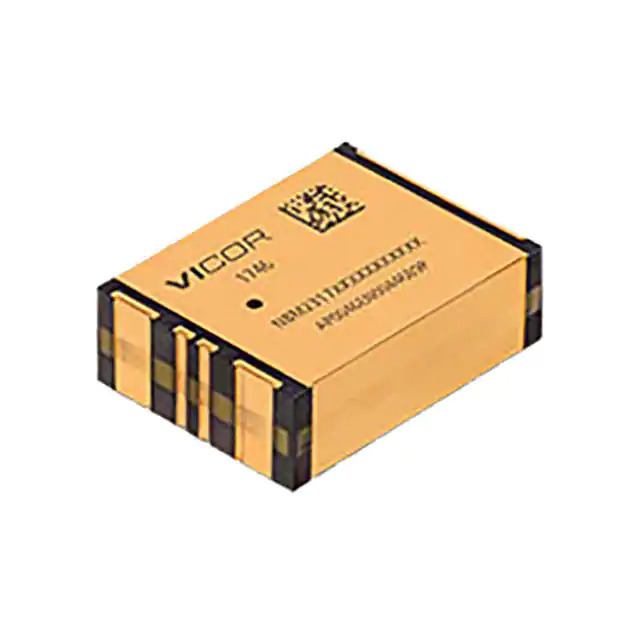

NBM2317S60E1560T0R Vicor Corporation
Same model may have multiple batches, images only for reference.

NBM2317S60E1560T0R

Part No NBM2317S60E1560T0R
Manufacturer Vicor Corporation
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 13.5V 810W / Bus Converter Module DC DC Converter 1 Output 13.5V 60A 38V - 60V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Vicor Corporation
Series VI Chip® NBM™ (800W)
Package Tray
Product Status Obsolete
Type Bus Converter Module
Number of Outputs 1
Voltage - Input (Min) 38V
Voltage - Input (Max) 60V
Voltage - Output 1 13.5V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 60A
Power (Watts) 810 W
Applications ITE (Commercial)
Features OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 125°C
Efficiency 97.9%
Mounting Type Surface Mount
Package / Case 6-SMD Module
Size / Dimension 0.90" L x 0.68" W x 0.29" H (22.8mm x 17.3mm x 7.4mm)
Supplier Device Package -
Approval Agency CE
Base Product Number NBM2317
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1356262-NBM2317S60E1560T0R
Ultra Librarian 3D Model Ultra Librarian NBM2317S60E1560T0R CAD Model

Description

The Vicor Corporation NBM2317S60E1560T0R is a bus converter module designed for power supplies in board mount applications.

  • Operating Temperature: -40°C ~ 125°C
  • Series: VI Chip® NBM™
  • Current - Output (Max): 60A
  • Power (Watts): 810W
  • Features: OCP, OTP, OVP, SCP, UVLO
  • Package / Case: 6-SMD Module
  • Mounting Type: Surface Mount
  • Approvals: CE
  • Applications: ITE (Commercial)
  • Efficiency: 97.9%
