Same model may have multiple batches, images only for reference.

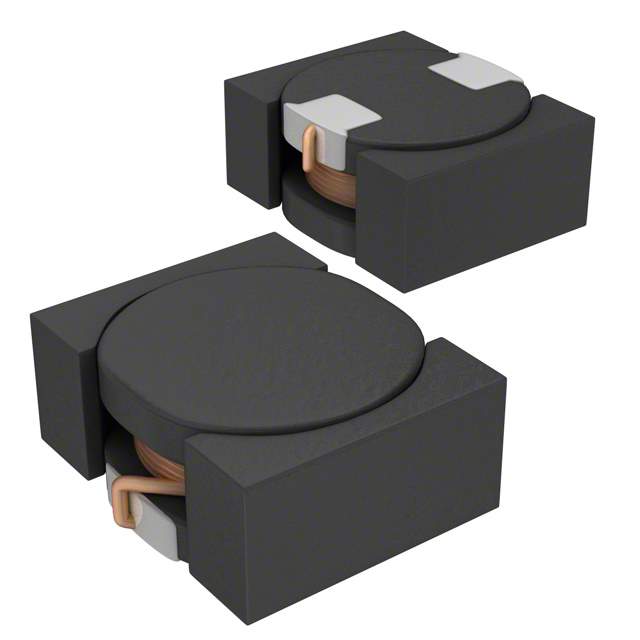

VLF302512MT-3R3M Real Image
Same model may have multiple batches, images only for reference.

VLF302512MT-3R3M

Part No VLF302512MT-3R3M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description SMD Inductors | FIXED IND 3.3UH 1.63A 108 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel
Status Obsolete
Type Wirewound
Material - Core Ferrite
Inductance 3.3μH
Tolerance ±20%
Current Rating (Amps) 1.63A
Current - Saturation 1.2A
Shielding Shielded
DC Resistance (DCR) 108mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.118" L x 0.098" W (3.00mm x 2.50mm)
Height - Seated (Maximum) 0.047" (1.20mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1279372-VLF302512MT-3R3M
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLF302512MT-3R3M CAD Model

Description

The VLF302512MT-3R3M is a surface mount shielded wirewound inductor that is used in various applications.

  • Manufacturer: The inductor is made by TDK Corporation
  • Packaging Type: has a packaging type of reel.
  • Inductance: The inductance of the inductor is 3.3μH
  • Tolerance: the tolerance is ±20%.
  • Current Saturation: The current saturation is 1.2A
  • DC Resistance (DCR): the DC resistance (DCR) is 108mOhm Max.
  • Operating Temperature Range: The temperature range for operating the inductor is -40°C to 105°C.
  • Category: The inductor is part of the Inductors, Coils, Chokes category
  • Height: has a height of 0.047" (1.20mm).
  • Manufacturer Homepage: www.tdk.com
  • Manufacturer Package: nonstandard.
  • Popularity Rating: The popularity rating for the inductor is medium
  • Supply and Demand Status: the supply and demand status is balance.
  • MSL Level: The inductor is also MSL Level 1 (Unlimited) compliant.
