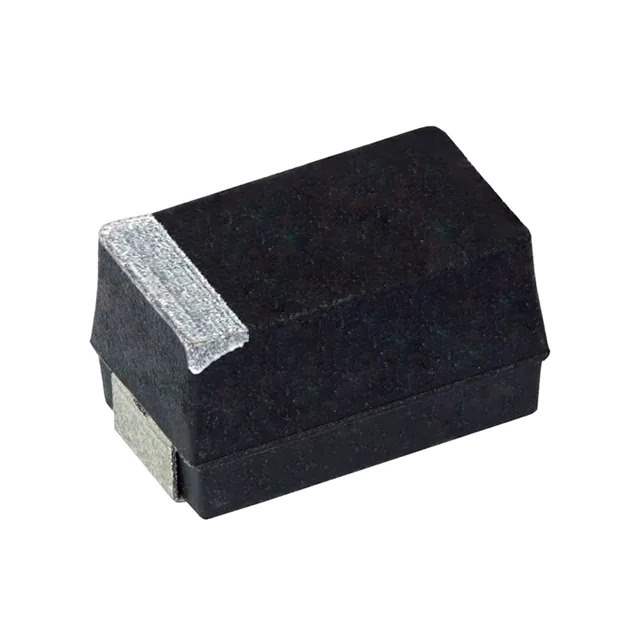

593D476X9020D2TE3 Real Image
Same model may have multiple batches, images only for reference.

593D476X9020D2TE3

Part No 593D476X9020D2TE3
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 47UF 10% 20V 2917 / 47 μF Molded Tantalum Capacitors 20 V 2917 (7343 Metric) 200mOhm
Datasheet
593D476X9020D2TE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Tantalum Capacitors
Mfr Vishay
Series TANTAMOUNT®, 593D
Package Tape & Reel
Product Status Active
Capacitance 47 µF
Tolerance ±10%
Voltage - Rated 20 V
Type Molded
ESR (Equivalent Series Resistance) 200mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 2917 (7343 Metric)
Size / Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.122" (3.10mm)
Manufacturer Size Code D
Features General Purpose
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Win Source Part Number 856630-593D476X9020D2TE3
Ultra Librarian 3D Model Ultra Librarian 593D476X9020D2TE3 CAD Model

Description

The 856630-593D476X9020D2TE3 is a tantalum capacitor from the TANTAMOUNT® 593D series manufactured by Vishay.

  • Series: TANTAMOUNT® 593D
  • Construction: Molded
  • Application: General-purpose
  • Size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Seated Height (Max): 0.122" (3.10mm)
  • Capacitance: 47 μF
  • Tolerance: ±10%
  • Rated Voltage: 20V
  • Equivalent Series Resistance (ESR): 200mOhm
  • Operating Temperature: -55°C to 125°C
  • Product Status: Active
  • Standard Package: 500 pcs
