Same model may have multiple batches, images only for reference.

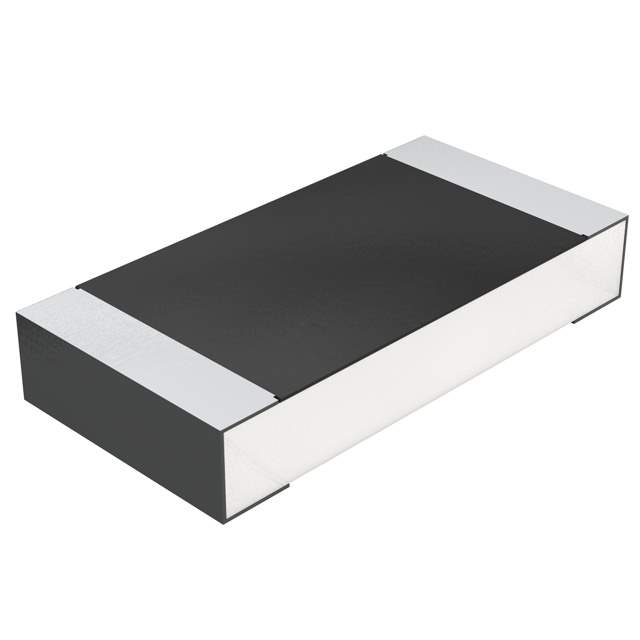

CRCW12064K70FKEA Real Image
Same model may have multiple batches, images only for reference.

CRCW12064K70FKEA

Part No CRCW12064K70FKEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 4.7K OHM 1% 1/4W 1206 / 4.7 kOhms ±1% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200 Thick Film
Datasheet
CRCW12064K70FKEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Vishay Dale
Packaging Reel - TR
Resistance 4.7 kOhms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Automotive AEC-Q200
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 1206 (3216 Metric)
Supplier Device Package 1206
Ratings AEC-Q200
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
Base Product Number CRCW1206
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number 541-4.70KFDKR,541-4.70KFCT,541-4.70KFTR,D25/CRCW1206 100 4K7 1% ET1 E3
Standard Package 5,000
Win Source Part Number 1330590-CRCW12064K70FKEA
Ultra Librarian 3D Model Ultra Librarian CRCW12064K70FKEA CAD Model

Description

The Vishay Dale 1330590-CRCW12064K70FKEA is a chip resistor surface mount type electronic component that comes in a reel-TR packaging.

  • Automotive: AEC-Q200
  • Size/Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Height-Seated Maximum: 0.024" (0.60mm)
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Power (Watts): 0.25W, 1/4W
  • Category: Resistors>Chip Resistor - Surface Mount
  • Resistance: 4.7 kOhms
  • Case/Package: 1206 (3216 Metric)
  • Operating Temperature Range: -55°C to 155°C
  • HTSUS: 8533.21.0030
  • Base Product Number: CRCW1206
  • RoHS Status: ROHS3 compliant
