Same model may have multiple batches, images only for reference.

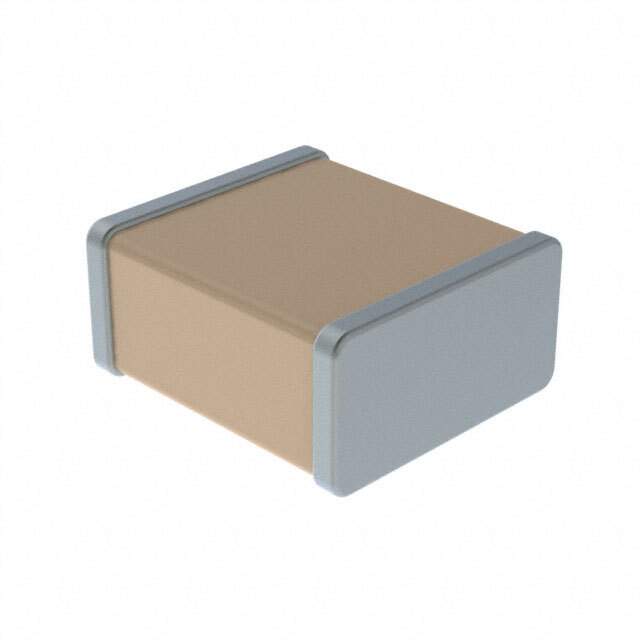

HV2220Y103KXHATHV Real Image
Same model may have multiple batches, images only for reference.

HV2220Y103KXHATHV

Part No HV2220Y103KXHATHV
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 10000PF 3KV X7R 2220 / 10000 pF ±10% 3000V (3kV) Ceramic Capacitor X7R 2220 (5750 Metric)
Datasheet
HV2220Y103KXHATHV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Vishay Vitramon
Series HV
Package Tape & Reel
Capacitance 10000 pF
Tolerance ±10%
Voltage - Rated 3000V (3kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 2220 (5750 Metric)
Size / Dimension 0.220" L x 0.200" W (5.59mm x 5.08mm)
Thickness (Max) 0.106" (2.70mm)
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1339160-HV2220Y103KXHATHV
Ultra Librarian 3D Model Ultra Librarian HV2220Y103KXHATHV CAD Model

Description

The HV2220Y103KXHATHV is a ceramic capacitor that is part of the HV series of ceramic capacitors manufactured by Vishay Vitramon.

  • Capacitance: 10000 pF
  • Tolerance: +/-10%
  • Voltage - Rated: 3kV (3000V)
  • Temperature Coefficient: X7R
  • Operating Temperature: -55°C ~ 125°C
  • Applications: High Voltage
  • Mounting Type: Surface Mount, MLCC
  • Package / Case: 2220 (5750 Metric)
  • Size / Dimension: 0.220" L x 0.200" W (5.59mm x 5.08mm)
  • Height - Seated (Max): -
  • Lead Spacing: -
  • Series: HV
  • Packaging: Tape & Reel (TR)
