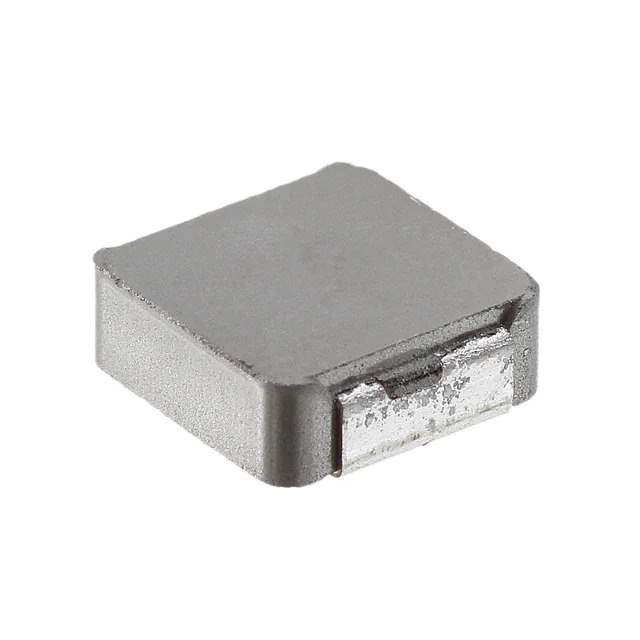

Same model may have multiple batches, images only for reference.

IHLP3232CZERR47M11

Name: IHLP3232CZERR47M11
Brand: Vishay
SKU: 921073
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHLP3232CZERR47M11
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 470NH 24A 2.72MOHM SMD
Datasheet	IHLP3232CZERR47M11 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Vishay
Series	IHLP-3232CZ-11
Package	Tape & Reel
Product Status	Active
Type	Molded
Inductance	470 nH
Tolerance	±20%
Current Rating (Amps)	24 A
Current - Saturation (Isat)	18A
Shielding	Shielded
DC Resistance (DCR)	2.72mOhm Max
Frequency - Self Resonant	69MHz
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.340" L x 0.322" W (8.64mm x 8.18mm)
Height - Seated (Max)	0.118" (3.00mm)
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	921073-IHLP3232CZERR47M11
Ultra Librarian 3D Model	Ultra Librarian IHLP3232CZERR47M11 CAD Model

Alternative Products

Description

The 921073-IHLP3232CZERR47M11 is a fixed inductor with an inductance of 470 nH.

Series: IHLP-3232CZ-11
Shielding: Shielded
Package: Tape & Reel
Dimensions: 0.340" L x 0.322" W (8.64mm x 8.18mm)
Seated Height: 0.118" (3.00mm)
Tolerance: ±20%
Current: 24A
DC Resistance (DCR): 2.72mOhm maximum
Mounting: Surface Mount
Package: Nonstandard
Operating Temperature: -55°C to 125°C
Status: Active
Manufacturer: Vishay
