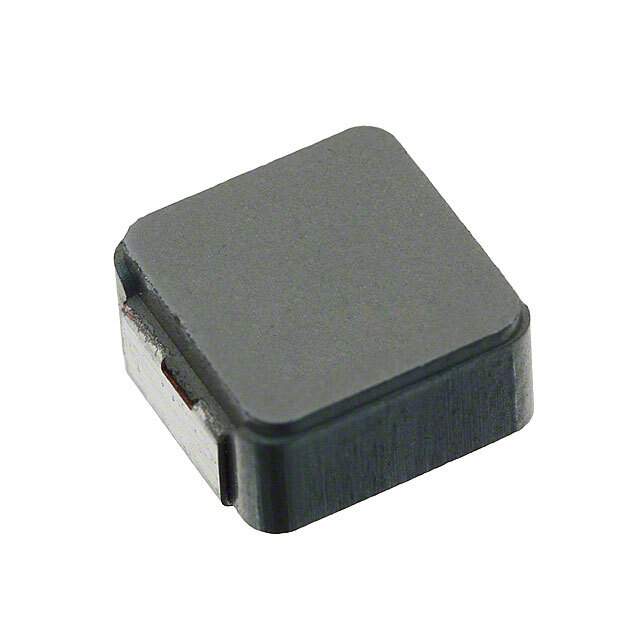

IHLP3232DZER2R2M11

Name: IHLP3232DZER2R2M11
Brand: Vishay
SKU: 776708
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHLP3232DZER2R2M11
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 14.5A 9.41 MOHM / Inductor Power Shielded Wirewound 2.2uH 20% 100KHz Powdered Iron 14.5A 0.00941Ohm DCR 3232 T/R
Datasheet	IHLP3232DZER2R2M11 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Vishay Dale
Series	IHLP-3232DZ-11
Packaging	Reel package
Type	Molded
Inductance	2.2μH
Tolerance	±20%
Current Rating	14.5A
Current - Saturation	10.2A
Shielding	Shielded
DC Resistance (DCR)	9.41 mOhm Max
Frequency - Self Resonant	25MHz
Operating Temperature Range	-55°C ~ 125°C
Test Frequency	100kHz
Mounting	SMD
Package	Nonstandard
Dimension	0.340" L x 0.322" W (8.64mm x 8.18mm)
Height - Seated (Maximum)	0.157" (4.00mm)
Win Source Part Number	776708-IHLP3232DZER2R2M11
Popularity	Medium
Supply and Demand Status	Balance
Family Name	IHLP-3232DZ-11
Introduction Date	February 21, 2011
ECCN	EAR99
Country of Origin	China, Israel, United States of America
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian IHLP3232DZER2R2M11 CAD Model

Alternative Products

Description

The Vishay IHLP3232DZER2R2M11 is a molded shielded inductor that has an inductance of 2.2μH and a current rating of 14.5A.

Inductance: 2.2μH
Current Rating: 14.5A
DC Resistance (DCR): 9.41 mOhm Max
Tolerance: ±20%
Package: Nonstandard Package
Saturation Current: 10.2A
Self-Resonant Frequency: 25MHz
Operating Temperature Range: -55°C to 125°C
REACH: Unaffected
ECCN: EAR99
EOL Date: 2027
