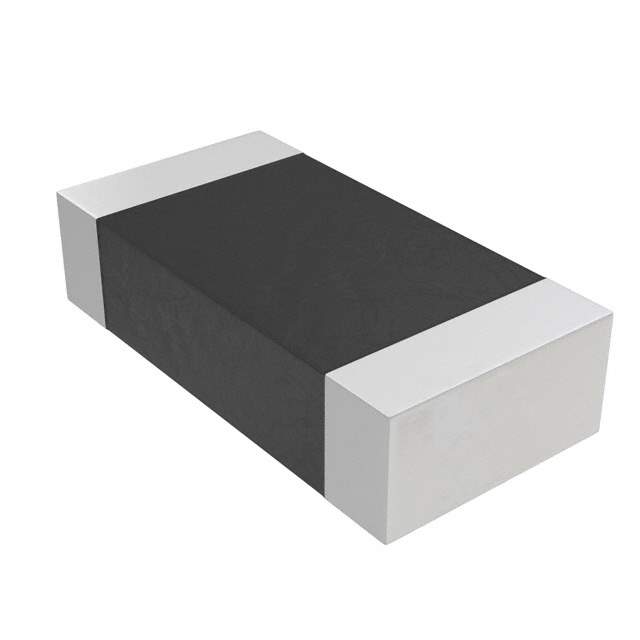

The NTHS0603N17N1503JE is a thermistor manufactured by Vishay. It's a negative temperature coefficient (NTC) thermistor, meaning its resistance decreases as its temperature increases. It is designed for temperature sensing and compensation applications.

Applications

• Temperature sensing in wearable devices
• Temperature compensation in LCD displays
• Temperature monitoring in battery packs
• Temperature control in 3D printers
• Inrush current limiting in power supplies

Features

• Small 0603 case size
• High accuracy and stability
• Fast response time
• Excellent long-term reliability
• Tape and reel packaging for automated assembly

Benefits

• Precise temperature measurement and control
• Reduced component count and board space
• Improved system performance and reliability
• Easy integration into automated manufacturing processes
• Stable performance over a wide temperature range

Technical Specifications

The NTHS0603N17N1503JE has a resistance value of 15 kΩ at 25°C with a tolerance of ±5%. The Beta value (temperature coefficient) is approximately 4250 K. The operating temperature range is -40°C to +125°C. The maximum power dissipation is typically around 100 mW. It is available in a standard 0603 surface mount package.

This thermistor is well-suited for applications requiring accurate and reliable temperature sensing in a compact form factor. Its small size allows for easy integration into densely populated circuit boards. The high Beta value provides a significant change in resistance over a small temperature range, making it suitable for precise temperature control applications. The excellent long-term stability ensures consistent performance over the lifetime of the product. The part is also RoHS compliant.
