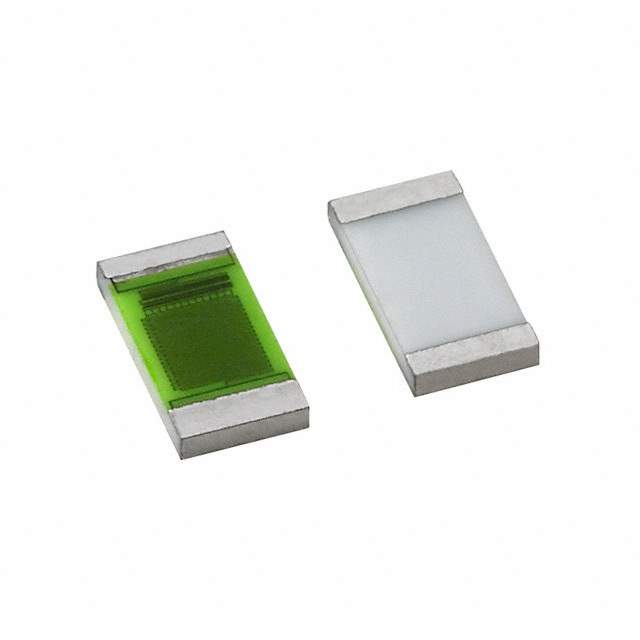

PTN0805E3012BST1 Real Image
Same model may have multiple batches, images only for reference.

PTN0805E3012BST1

Part No PTN0805E3012BST1
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 30.1K OHM 0.1% 1/5W 0805  /  30.1 kOhms ±0.1% 0.2W, 1/5W Chip Resistor 0805 (2012 Metric) Anti-Sulfur, Moisture Resistant, Non-Inductive Thin Film
Datasheet
PTN0805E3012BST1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale Thin Film
Series PTN
Package Tape & Reel
Resistance 30.1 kOhms
Tolerance ±0.1%
Power (Watts) 0.2W, 1/5W
Composition Thin Film
Features Anti-Sulfur, Moisture Resistant, Non-Inductive
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm)
Height - Seated (Max) 0.033" (0.84mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 764-1518-2,764-1518-6,764-1518-1
Standard Package 1,000
Win Source Part Number 972136-PTN0805E3012BST1
Ultra Librarian 3D Model Ultra Librarian PTN0805E3012BST1 CAD Model

Description

The Vishay Dale Thin Film PTN series chip resistor is a surface-mount component with a resistance of 30.1 kOhms, a power rating of 0.2W, and a tolerance of ±0.1%.

  • Resistance: 30.1 kOhms
  • Power Rating: 0.2W
  • Tolerance: ±0.1%
  • Properties: Anti-sulfur, moisture-resistant, and non-inductive
  • Temperature Coefficient: ±25ppm/°C
  • Package: 0805 (2012 Metric)
  • Height-Seated (max): 0.033" (0.84mm)
  • Dimension: 0.080" L x 0.050" W (2.03mm x 1.27mm)
  • Packaging: Tape and reel
  • Package: 1,000
  • Application: Chip resistor applications
