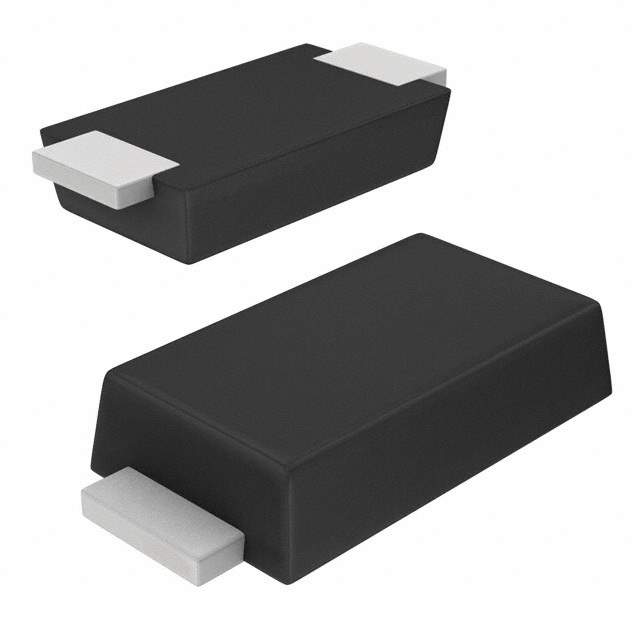

SMA6F13A-M3/6A Real Image
Same model may have multiple batches, images only for reference.

SMA6F13A-M3/6A

Part No SMA6F13A-M3/6A
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 13VWM 23.9VC DO221AC
Datasheet
SMA6F13A-M3/6A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 13V
Minimum Breakdown Voltage 14.4V
Max Clamping Voltage 23.9V
Peak Pulse Current(Ippm) 147A (8/20μs)
Power Dissipation - Pd 4000W (4kW)
Applications General Purpose
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting SMD (SMT)
Case / Package DO-221AC (SlimSMA)
Win Source Part Number 1097310-SMA6F13A-M3/6A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SMA6F13A-M3/6A CAD Model

Description

The Vishay 1097310-SMA6F13A-M3/6A is a zener diode designed for general purpose applications.

  • Type: Unidirectional
  • Clamping Voltage: 23.9V
  • Peak Pulse Current: 147A (8/20μs)
  • Power Dissipation: 4000W (4kW)
  • Minimum Breakdown Voltage: 14.4V
  • Package Type: Reel - TR
  • Temperature Range: -55°C to 175°C (TJ)
  • Mounting: SMD (SMT)
  • Case/Package: DO-221AC (SlimSMA)
