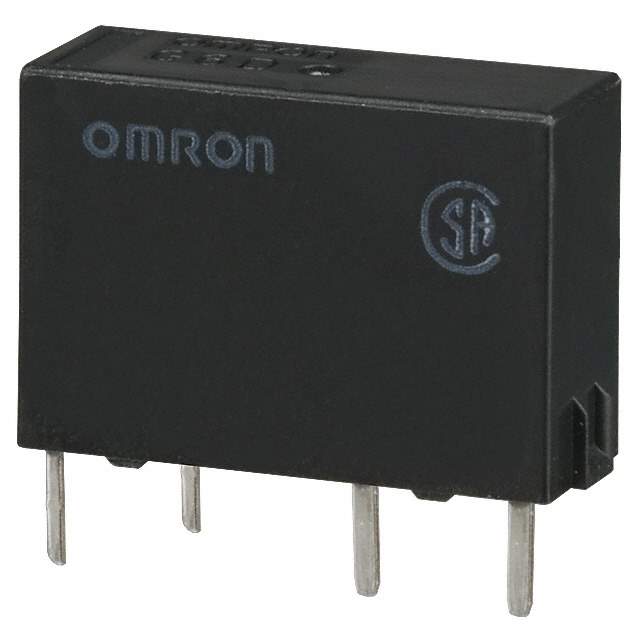

G6D-1A-ASIDC21 Real Image
Same model may have multiple batches, images only for reference.

G6D-1A-ASIDC21

Part No G6D-1A-ASIDC21
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 21V
Datasheet
G6D-1A-ASIDC21 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Omron Electronics Inc-EMC Div
Series G6D-ASI
Packaging Bulk
Relay Type General
Coil Type Non Latching
Coil Current 9.5mA
Coil Voltage 21VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5A
Switching Voltage 250VAC, 30VDC - Max
Turn On Voltage (Maximum) 14.7 VDC
Turn Off Voltage (Minimum) 2.1 VDC
Operate Time 10ms
Release Time 5ms
Features Sealed - Fully
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver Alloy
Coil Power 200 mW
Coil Resistance 2.21 kOhms
Operating Temperature Range -25°C ~ 70°C
Win Source Part Number 774954-G6D-1A-ASIDC21
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian G6D-1A-ASIDC21 CAD Model

Description

The Omron G6D-ASI relay is a general-purpose relay with a contact form of SPST-NO (1 Form A).

  • Contact Form: SPST-NO (1 Form A)
  • Switching Voltage: 250VAC and 30VDC maximum
  • Contact Rating: 5A
  • Coil Voltage: 21VDC
  • Coil Resistance: 2.21 kOhms
  • Coil Current: 9.5mA
  • Sealed: Fully
  • Coil Type: Non-latching
  • Operating Temperature: -25°C to 70°C
  • Operate Time: 10ms
  • Release Time: 5ms
  • Mounting: Through Hole
  • Termination Style: PC pin
  • Popularity: Medium
