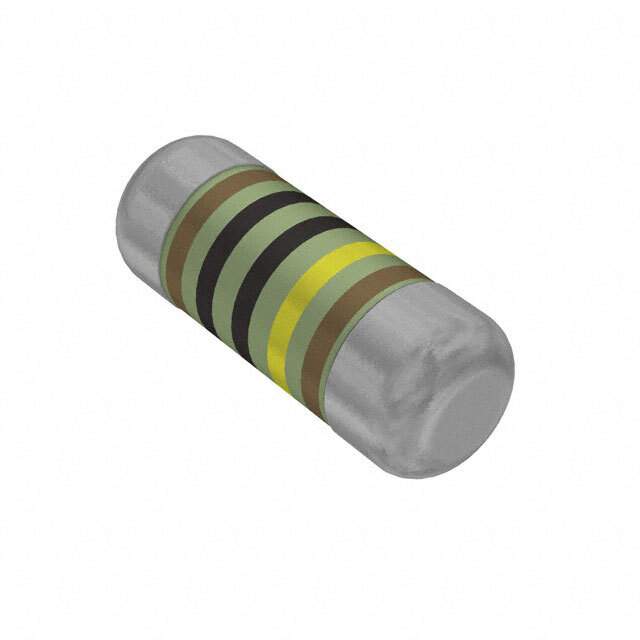

SMM02040C1004FB000 Real Image
Same model may have multiple batches, images only for reference.

SMM02040C1004FB000

Part No SMM02040C1004FB000
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 1M OHM 1% 1/4W MELF 0204
Datasheet
SMM02040C1004FB000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 40 Weeks
Features 1 MOhms ±1% 0.25W, 1/4W Chip Resistor MELF, 0204 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
Manufacturer Vishay
Series SMM0204
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C
Package MELF, 0204
Case / Package Mini MELF
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0040
Other Part Number 749-SMM02040C1004FB000DKR, SMM02040C1004FB000-ND, 749-SMM02040C1004FB000CT, 749-SMM02040C1004FB000TR
Quantity per package 10000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 934336-SMM02040C1004FB000
Ultra Librarian 3D Model Ultra Librarian SMM02040C1004FB000 CAD Model

Description

The Vishay SMM02040C1004FB000 is a 1 MOhms ±1% 0.25W, 1/4W chip resistor that is perfect for a variety of applications.

  • Resistance: 1 MOhms ±1%
  • Power: 0.25W, 1/4W
  • Package: MELF, 0204
  • Category: Resistor
  • Package: Reel - TR
  • Quantity per Package: 10000
  • Estimated Production Lead Time: 40 weeks
  • Supply and Demand Status: Balanced
  • REACH: Unaffected
  • HTSUS: 8533.21.0040
  • Other Part Numbers: 749-SMM02040C1004FB000DKR, SMM02040C1004FB000-ND, 749-SMM02040C1004FB000CT, 749-SMM02040C1004FB000TR
