Same model may have multiple batches, images only for reference.

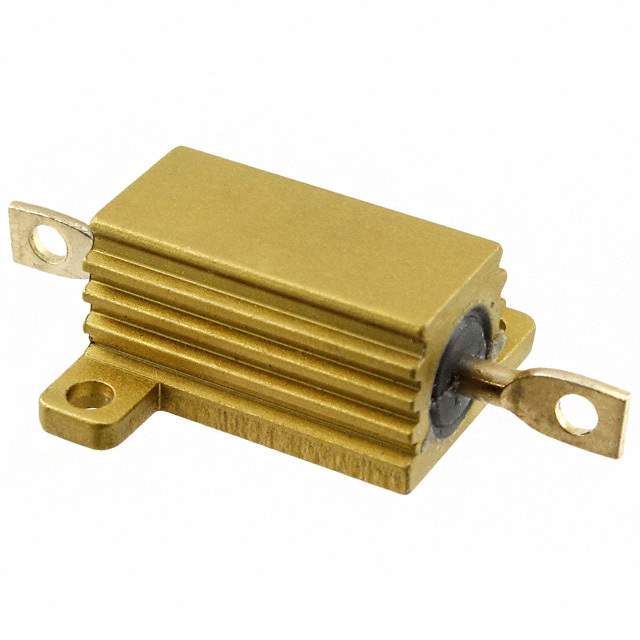

TMC01075R00FE02 Real Image
Same model may have multiple batches, images only for reference.

TMC01075R00FE02

Part No TMC01075R00FE02
Manufacturer Vishay
Catalog Chassis Mount Resistors
Description RES CHAS MNT 75 OHM 1% 12.5W / 75 Ohms ±1% 12.5W Wirewound Chassis Mount Resistor
Datasheet
TMC01075R00FE02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chassis Mount Resistors
Mfr Vishay Dale
Series TMC
Package Bulk
Resistance 75 Ohms
Tolerance ±1%
Power (Watts) 12.5W
Composition Wirewound
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 250°C
Features Moisture Resistant
Coating, Housing Type Aluminum
Mounting Feature Flanges
Size / Dimension 0.750" L x 0.800" W (19.05mm x 20.32mm)
Height - Seated (Max) 0.405" (10.29mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Standard Package 25
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1350699-TMC01075R00FE02
Ultra Librarian 3D Model Ultra Librarian TMC01075R00FE02 CAD Model

Description

The Vishay Dale TMC01075R00FE02 is a 12.5W chassis mount resistor from the TMC series.

  • Series: TMC
  • Power: 12.5W
  • Mounting Type: Chassis Mount
  • Composition: Wirewound
  • Resistance: 75 ohms
  • Tolerance: ±1%
  • Feature: Moisture Resistant
  • Operating Temperature: -55°C to 250°C
  • Package: Aluminum Axial Box
  • Mounting: Flanges
