Same model may have multiple batches, images only for reference.

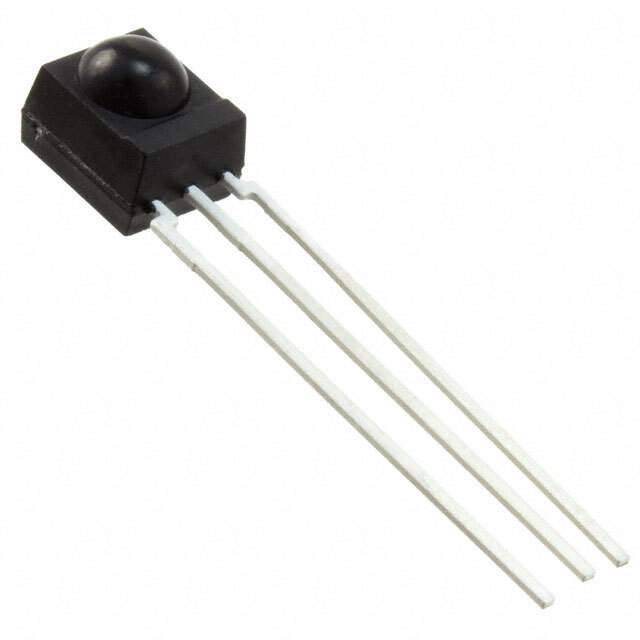

TSOP2236 Real Image
Same model may have multiple batches, images only for reference.

TSOP2236

Part No TSOP2236
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description IC IR RCVR MODULE 36KHZ
Datasheet
TSOP2236 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Sensing Distance 45m
Carrier Frequency 36.0kHz
Supply Voltage - Operating 2.5 V to 5.5 V
Operating Supply Current 0.7mA
Orientation Side View
Mounting Through Hole
Temperature Range - Operating -25°C to 85°C (TA)
Win Source Part Number 213551-TSOP2236
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TSOP2236 CAD Model

Description

This electronic component is manufactured by Vishay and has a Win Source part number of 213551-TSOP2236.

  • Sensing Distance: 45m
  • Carrier Frequency: 36.0kHz
  • Temperature Range: -25°C to 85°C (TA)
  • Operating Supply Current: 0.7mA
  • Mounting: through hole
  • Orientation: side view
