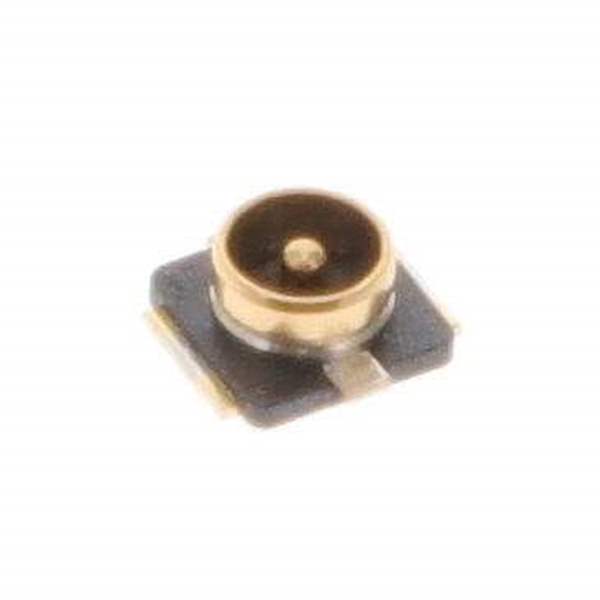

2337019-1 Real Image
Same model may have multiple batches, images only for reference.

2337019-1

Part No 2337019-1
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF)
Description UMCC MICRO-COAX RECEPTACLE, GEN / U.FL (UMCC) Connector Receptacle, Male Pin 50Ohm Surface Mount Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr TE Connectivity AMP Connectors
Package Tape & Reel
Connector Style U.FL (UMCC)
Connector Type Receptacle, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting SMD (SMT)
Frequency - Max 6 GHz
Number of Ports 1
Center Contact Material Copper Alloy
Body Material Copper Alloy
Center Contact Plating Gold
Dielectric Material Thermoplastic
Temperature Range - Operating -40°C ~ 85°C
Base Product Number 2337019
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names A144746CT,A144746DKR,-2337019-1-SI,A144746TR
Standard Package 10,000
Win Source Part Number 968932-2337019-1
Ultra Librarian 3D Model Ultra Librarian 2337019-1 CAD Model

Description

The TE Connectivity AMP Connectors 968932-2337019-1 is a U.FL (UMCC) coaxial connector that has a frequency range of up to 6 GHz and a 50Ohm impedance.

  • Frequency Range: Up to 6 GHz
  • Impedance: 50Ohm
  • Connector Type: Male pin receptacle
  • Contact Termination: Solder
  • Connector Style: U.FL (UMCC)
  • Package: Tape and reel
  • Standard Package: 10,000
  • Mounting: SMD (SMT)
  • Body Material: Copper alloy
  • Center Contact Material: Copper alloy with gold plating
  • Dielectric Material: Thermoplastic
