Same model may have multiple batches, images only for reference.

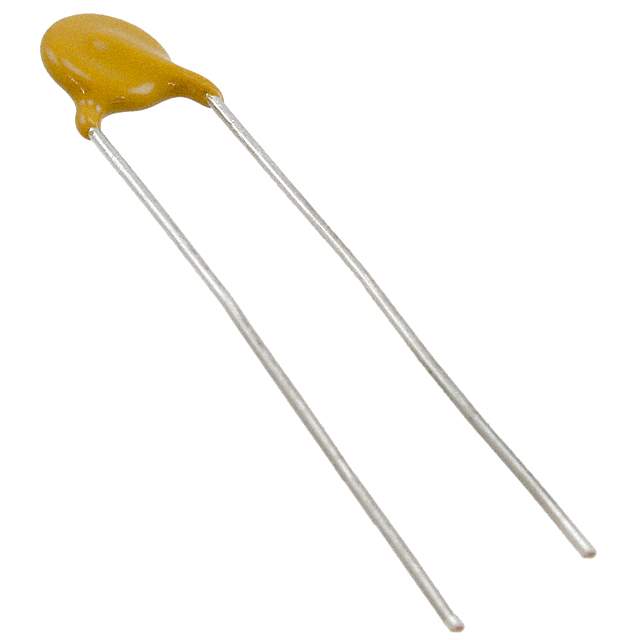

VY1222M47Y5UQ6TV0 Real Image
Same model may have multiple batches, images only for reference.

VY1222M47Y5UQ6TV0

Part No VY1222M47Y5UQ6TV0
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 2200PF 760VAC Y5U RADIAL / 2200 pF ±20% 760VAC Ceramic Capacitor Y5U (E) Radial, Disc
Datasheet
VY1222M47Y5UQ6TV0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series VY1
Package Tape & Reel (TR),Cut Tape (CT)
Capacitance 2200 pF
Tolerance ±20%
Voltage - Rated 760VAC
Temperature Coefficient Y5U (E)
Temperature Range - Operating -40°C ~ 125°C
Ratings X1, Y1
Applications Safety
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.472" Dia (12.00mm)
Height - Seated (Max) 0.630" (16.00mm)
Lead Spacing 0.394" (10.00mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.23.0060
Other Names BC5262TR,BC5262CT,VY1222M47Y5UQ6TV0-ND
Standard Package 500
Win Source Part Number 1001148-VY1222M47Y5UQ6TV0
Ultra Librarian 3D Model Ultra Librarian VY1222M47Y5UQ6TV0 CAD Model

Description

This electronic component is a ceramic capacitor with a capacitance of 2200 pF and a voltage rating of 760VAC.

  • Capacitance: 2200 pF
  • Voltage Rating: 760VAC
  • Tolerance: ±20%
  • Temperature Coefficient: Y5U (E)
  • Manufacturer: Vishay Beyschlag/Draloric/BC Components
  • Series: VY1
  • Package: Radial, disc
  • Seated Height: 0.630" (16.00mm)
  • Standard Package: 500 pieces
  • Lead Spacing: 0.394" (10.00mm)
  • Lead Style: Formed leads - kinked
  • RoHS Compliant: Yes
  • Temperature Range: -40°C ~ 125°C
