Same model may have multiple batches, images only for reference.

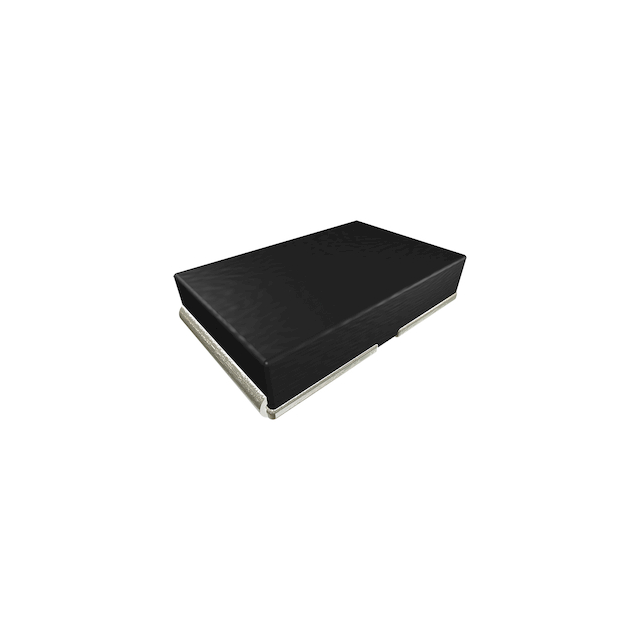

WSHM2818R0100FEA Real Image
Same model may have multiple batches, images only for reference.

WSHM2818R0100FEA

Part No WSHM2818R0100FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.01 OHM 1% 7W 2818 / 10 mOhms ±1% 7W Chip Resistor Nonstandard Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
Datasheet
WSHM2818R0100FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Vishay Dale
Packaging Reel - TR
Resistance 10 mOhms
Tolerance ±1%
Power (Watts) 7W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Case / Package Nonstandard
Supplier Device Package 2818
Ratings AEC-Q200
Size / Dimension 0.280" L x 0.181" W (7.10mm x 4.60mm)
Height - Seated (Max) 0.069" (1.75mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number 541-2626-6,541-2626-2,541-2626-1
Standard Package 3,500
Win Source Part Number 1327055-WSHM2818R0100FEA
Ultra Librarian 3D Model Ultra Librarian WSHM2818R0100FEA CAD Model

Description

This electronic component is a product of Vishay Dale and has a Win Source Part Number of 1327055-WSHM2818R0100FEA.

  • Category: Resistors
  • Standard Package: 3,500
  • AEC-Q200 Rated: Yes
  • Power: 7W
  • Tolerance: ±1%
  • Automotive Applications: Ideal for use in
  • Features: current sense, moisture resistant, and pulse-withstanding
  • Temperature Range: -65°C to 170°C
  • ROHS3 Compliant: Yes
