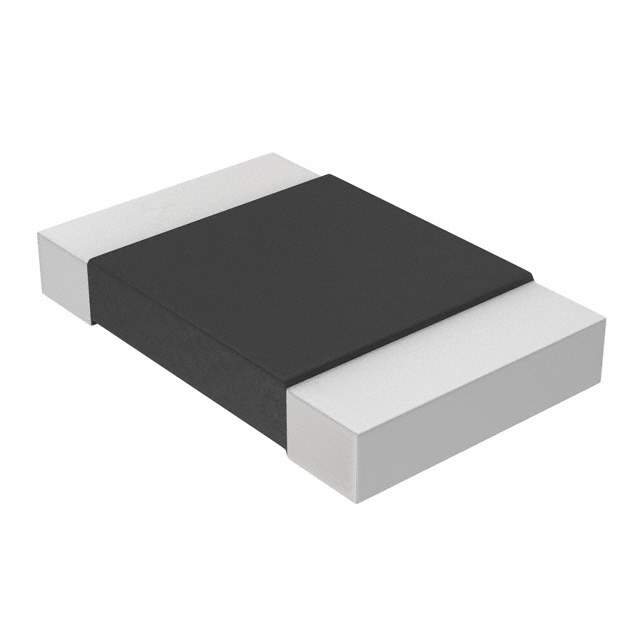

WSL0805R0200FEA18 Real Image
Same model may have multiple batches, images only for reference.

WSL0805R0200FEA18

Part No WSL0805R0200FEA18
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 0.02 OHM 1% 1/4W 0805
Datasheet
WSL0805R0200FEA18 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay
Packaging Reel - TR
Status Active
Resistance (Ohms) 0.02
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C to 170°C
Case / Package 0805
Height - Seated (Max) 0.018" (0.46mm)
Number of Terminations 2
Win Source Part Number 036519-WSL0805R0200FEA18
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian WSL0805R0200FEA18 CAD Model

Description

The WSL0805R0200FEA18 is a metal element current sense resistor from Vishay.

  • Resistance: 0.02 Ohms
  • Power Rating: 0.25W
  • Tolerance: ±1%
  • Applications: automotive AEC-Q200, pulse withstanding, moisture resistant and current sensing applications.
  • Applications: automotive AEC-Q200, pulse withstanding, moisture resistant and current sensing applications.
